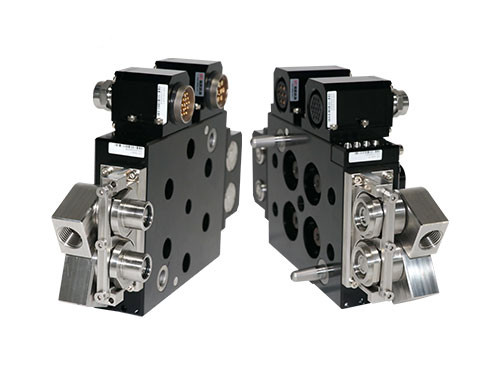

LT-F08 Utility Coupler

Model: LH-F08

Robot side PO:1602 Tool side PO:1602

Provide energy connection between master station and slave station

With X, y, Z, R direction floating performance, eliminate docking error

Modular design of media unit, more flexible collocation

Docking includes power, data, i/o, air, liquid and other media

Docking / separation status LED visible

Identification of slave station number in standard configuration of slave station

  • Introduction
  • CAD Drawing
  • 3D Model
  • Optional Modules

Utility coupler is divided into fixed port and floating port, a flexible utility connector could couples utilities such as electric signals, pneumatic air, fulids for docking and fixturing applications. The fixed port has a unique flexible mechanical device, which can compensate the positioning error, mechanical error and other errors in the docking process. It is mainly used in the field of automotive plant,It is used to quickly supply power, pneumatic air, liquid and signal to the tooling equipment or trolley when they changed.

Features:

  1. Integrated 8×PT3/8 self-seal pneumatic ports
  2. Same standard mounting face with LT Robotic tool changer
  3. Optional actuated servo motor or cylinder

Compensation range available:

  1. Compliance(X&Y Axis):±4mm
  2. Compliance(Z Axis):2mm
  3. Rotational Compliance:±3°
  4. Min.Coupling Force:≥2500N
