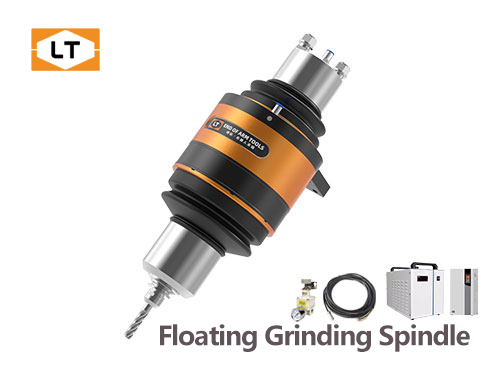

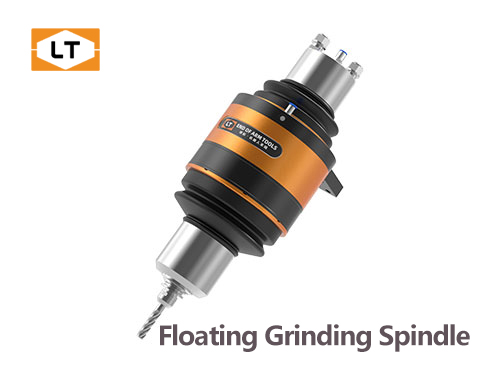

LT-FR080A-80 Floating Grinding Spindle

Model: LT-FR080A-80

PO: 3149

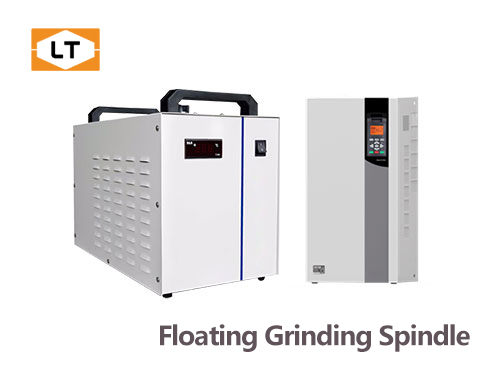

Cooling method: water cooling / oil cooling

Interface: Φ8 air pipe

Clamping range: 3-16mm

with large torque, strong grinding ability

Replaceable tools, the interface of spindle tool holder: ISO20

  • Introduction
  • CAD Drawing
  • 3D Model
Mode No. LT-FR080A-80
Autorotation Rate 24000rpm
Power 2.5kW
Floating Angle(X,Y) ±5°
Radial Floating Angle 360°
Axial Compliance 12mm
Floating Moment 36.4N-172N
Chatter 1μm
Diameter of Floating Air Pipes Φ4mm
Diameter of Spindle Air Pipes Φ6mm
Air Pressure Adjustable Range 0~0.4Mpa
Dimension Φ167mm*455mm
Weight 16026g
