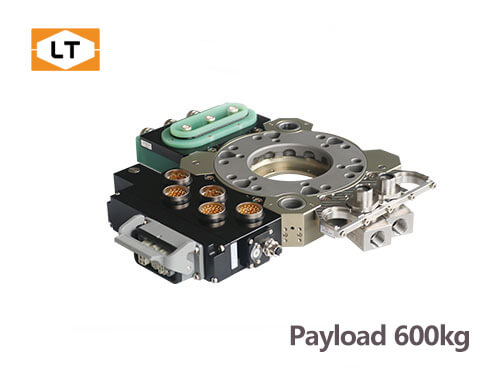

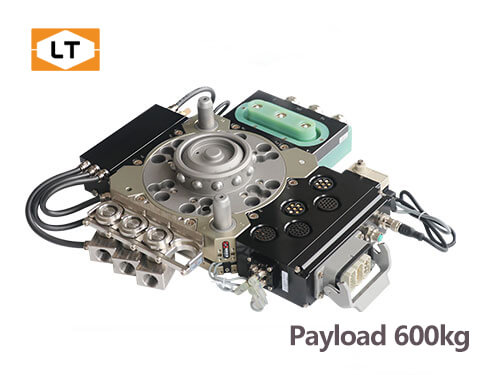

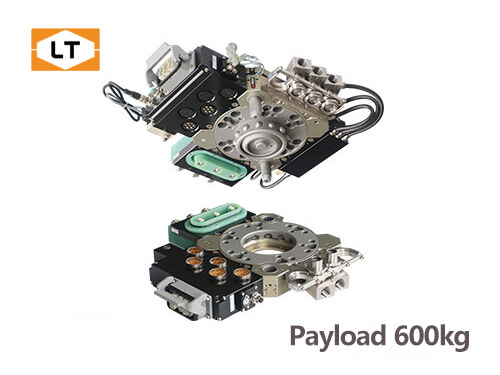

Model: LTC-0600D
Robot Side PO: 0164
Tool Side PO: 0265
Recommended payload ≤ 600kg
Locking force: 46680N allowable Moment: 3200N·m (static) allowable torque: 3200N·m (static)
4 modules mounting interface
Suitable for spot welding, assembly, handling and other applications
With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor
SO125, ISO160 standard flange interface
| Model | Master plate | LTC-0600DM80/LTC-0600DM100 |
| Tool plate | LTC-0600DT | |
| Load | Payload capacity | 600kg |
| (when pressure 0.49Mpa）Locking Force | 46680N | |
| (Static)Allowable moment | 3200N·m | |
| (Static)Allowable torque | 3200N·m | |

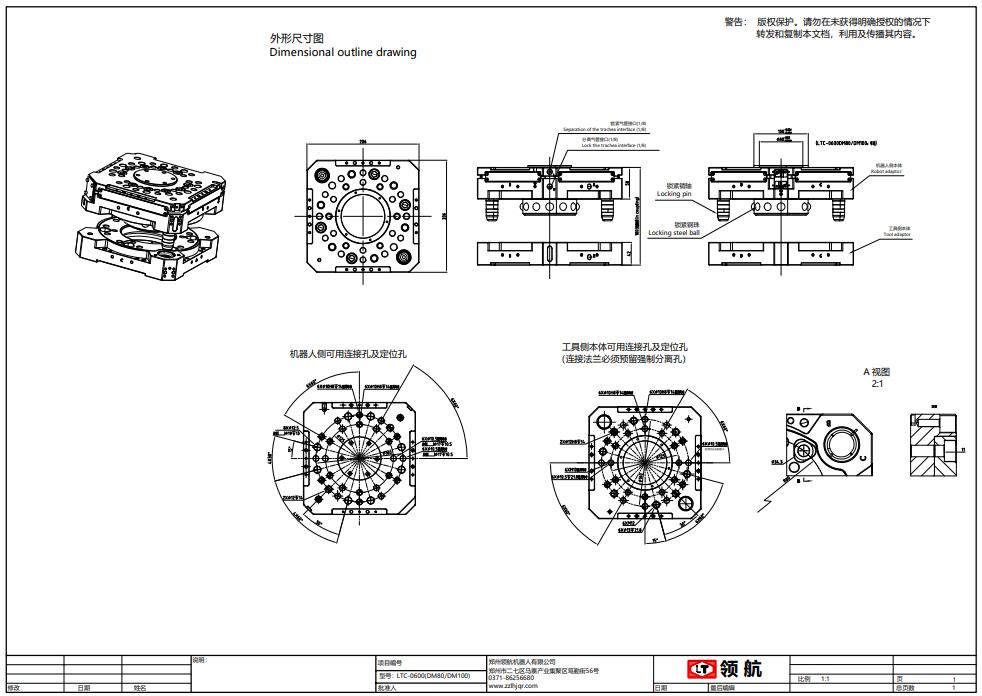

| Size and precision | Housing diameter | 206mm*206mm |
| Combined profile | 100mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 11.2kg |
| Tool side | 6kg | |
Sensor*
Electrical Module
| 3pins High Current Module | ||
|---|---|---|
| PO | 1009 | 1010 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E03K | |
| Spec | 150A*3pins | |
| Weight | 1.704kg | 1.602kg |
| Details | ||
| 3pins High Current Module | ||
|---|---|---|
| PO | 1088 | 1089 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E03Q | |
| Spec | 400A*3pins | |
| Weight | 1.35kg | 1.45kg |
| Details | ||
Servo Motor Module
| ABB Servo Spot Welding Module | ||
|---|---|---|
| PO | 1307 | 1308 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM01C-MS10 | |
| Spec | ABB Servo Spot Welding Module | |
| Weight | 1.11kg | 1.34kg |
| Details | ||
| Kuka Spot Welding Servo Module | ||
|---|---|---|
| PO | 1303 | 1304 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM02C-MS14 | |
| Spec | Kuka Spot Welding Servo Module | |
| Weight | 1.01kg | 1.24kg |
| Details | ||
Gas and Liquid Module
| 11-way Air Supply Module | ||
|---|---|---|
| PO | 1223 | 1222 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC11A | |
| Spec | 11-way Air Supply Module | |
| Weight | 0.8kg | 0.8kg |
| Details | ||
| 6-way Air Supply Module (Self Sealing) | ||
|---|---|---|
| PO | 1226 | 1227 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GS06A | |
| Spec | 6-way Air Supply Module (Self Sealing) | |
| Weight | 0.95kg | 0.95kg |
| Details | ||
| 4-way Fluid & Air module | ||
|---|---|---|
| PO | 1266 | 1267 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-L04N-04 | |
| Spec | 4-way Fluid & Air module | |
| Weight | 2.144kg | 2.108kg |
| Details | ||
Bus Module
| Profinet Bus Control Module | ||
|---|---|---|
| PO | 1309 | 1310 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C26-BM01-AF03 | |
| Spec | Profinet Bus Control Module | |
| Weight | 1.51kg | 0.85kg |
| Details | ||
