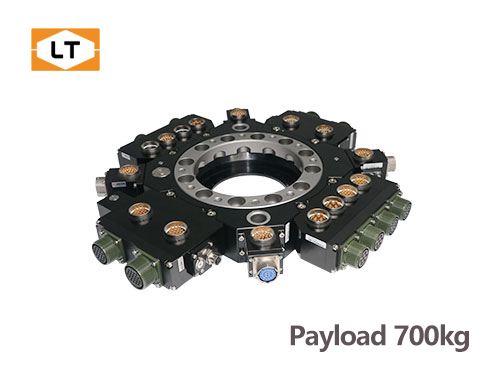

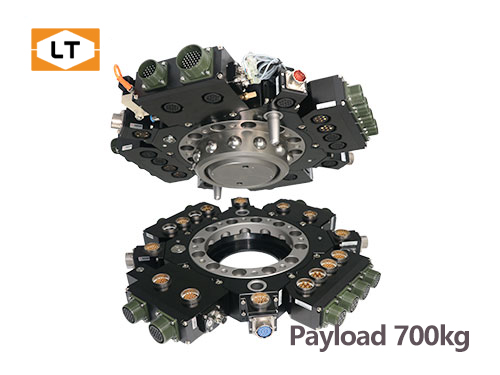

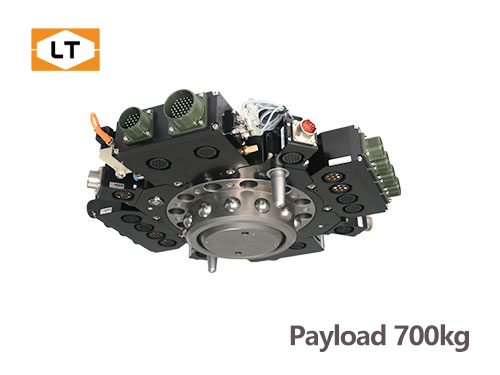

Model: LTC-0700B
Robot Side PO: 0143
Tool Side PO: 0243
Recommended payload ≤ 700kg
Locking force: 68000N allowable Moment: 5060N·m (static) allowable torque: 5000N·m (static)
1*PT3/8 self sealing pneumatic port and 8 modules mounting interface
Suitable for automotive spot welding, handling and other applications
With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.

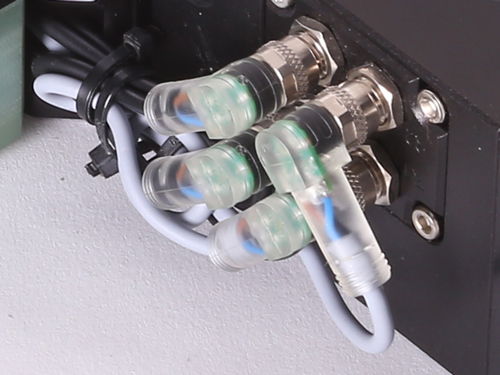

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor
| Model | Master plate | LTC-0700BM |
| Tool plate | LTC-0700BT | |
| load | Payload capacity | 700kg |
| (when pressure 0.49Mpa）Locking Force | 68000N | |
| (Static)Allowable moment | 5060N·m | |
| (Static)Allowable torque | 5000N·m | |

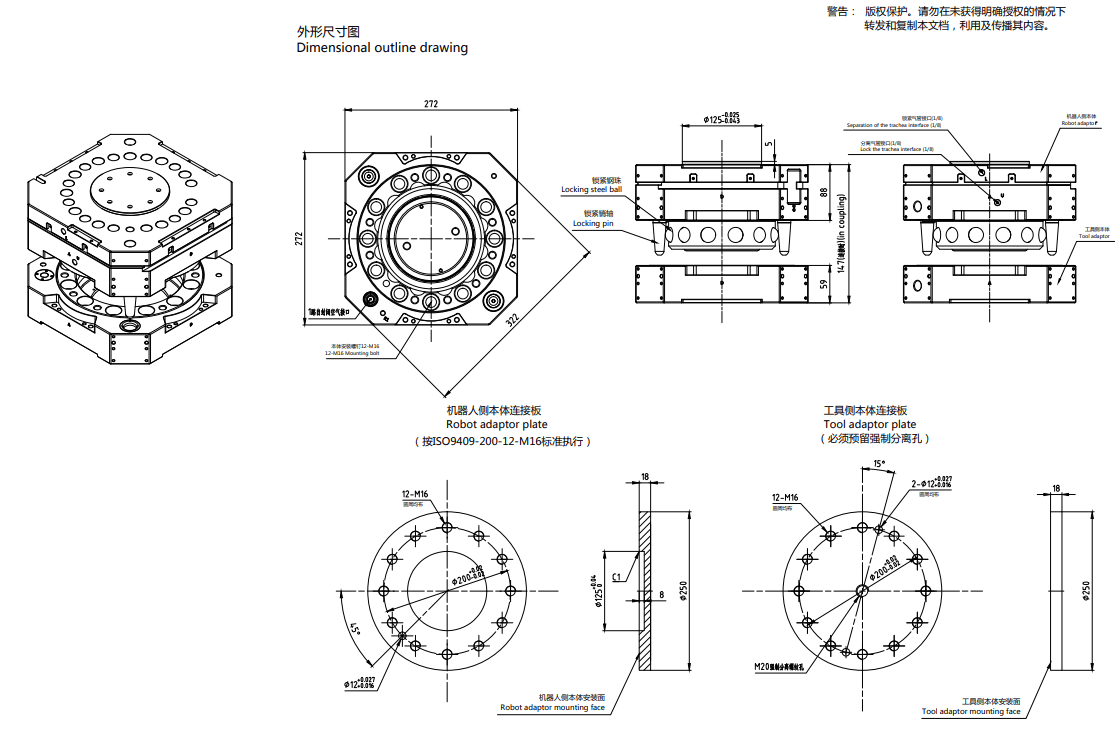

| Size and precision | Housing diameter | 272mm*272mm |
| Combined profile | 147mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 25.4kg |
| Tool side | 9.3Kg | |
| Air connector | Pneumatic port | 1*PT3/8 (self-sealing) |
| Max pressure | 0.8Mpa | |
Sensor*
Electrical Module
| 20 Pins Signal Module | ||
|---|---|---|
| PO | 0740 | 0741 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C22-MS20-AF03 | |
| Spec | 20 Pins Signal Module | |
| Weight | 0.82kg | 0.72kg |
| Details | ||
| 3pins High Current Module | ||
|---|---|---|
| PO | 1009 | 1010 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E03K | |
| Spec | 150A*3pins | |
| Weight | 1.704kg | 1.602kg |
| Details | ||
| 3pins High Current Module | ||
|---|---|---|
| PO | 1088 | 1089 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E03Q | |
| Spec | 400A*3pins | |
| Weight | 1.35kg | 1.45kg |
| Details | ||
Servo Motor Module
| Single Servo Module | ||
|---|---|---|
| PO | 0886 | 0887 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C31-SM03C | |
| Spec | Single Servo Module | |
| Weight | 1.01kg | 1.32kg |
| Details | ||
| Dual Servo Module | ||
|---|---|---|
| PO | 0752 | 0753 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C41-SM03C-SM03C | |
| Spec | Dual servo module | |
| Weight | 1.5kg | 1.5kg |
| Details | ||
| ABB Servo Spot Welding Module | ||
|---|---|---|
| PO | 1307 | 1308 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM01C-MS10 | |
| Spec | ABB Servo Spot Welding Module | |
| Weight | 1.11kg | 1.34kg |
| Details | ||
| Kuka Spot Welding Servo Module | ||
|---|---|---|
| PO | 1303 | 1304 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM02C-MS14 | |
| Spec | Kuka Spot Welding Servo Module | |
| Weight | 1.01kg | 1.24kg |
| Details | ||
Gas and Liquid Module
| 11-way Air Supply Module | ||
|---|---|---|
| PO | 1223 | 1222 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC11A | |
| Spec | 11-way Air Supply Module | |
| Weight | 0.8kg | 0.8kg |
| Details | ||
| 6-way Air Supply Module (Self Sealing) | ||
|---|---|---|
| PO | 1226 | 1227 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GS06A | |
| Spec | 6-way Air Supply Module (Self Sealing) | |
| Weight | 0.95kg | 0.95kg |
| Details | ||
| 4-way Fluid & Air module | ||
|---|---|---|
| PO | 0430 | 0434 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-L04A-04 | |
| Spec | 4-way Fluid & Air module | |
| Weight | 2.144kg | 2.108kg |
| Details | ||
