Construction of Robot Tool Changer

A robot tool changer is a device used in robotics to quickly and efficiently switch between different end effectors, such as grippers, drills, or cameras. It is essentially a mechanism that connects the robot arm to the tool, allowing for easy and automated tool changes.

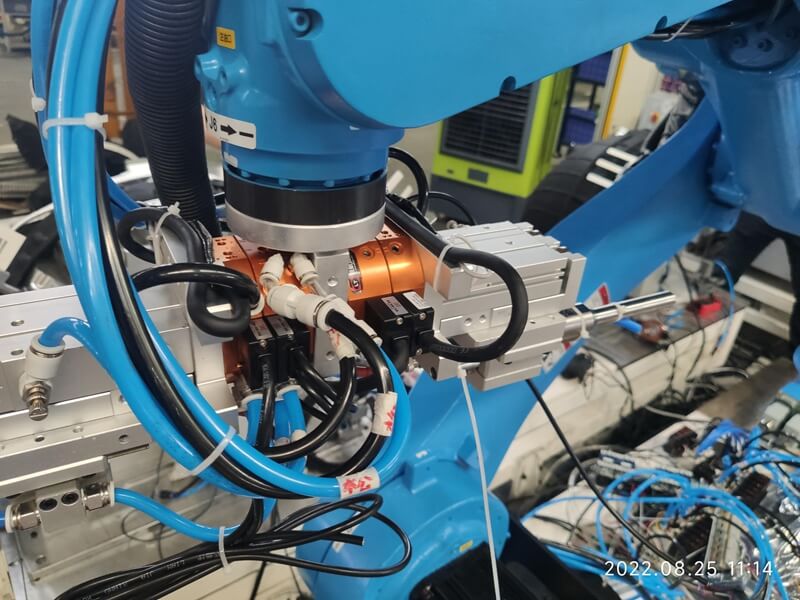

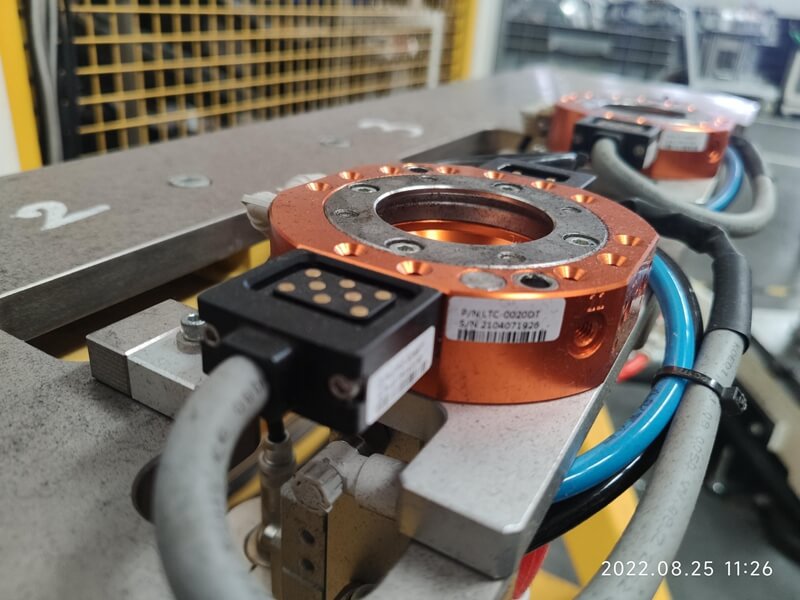

The construction of a robot tool changer typically consists of two main parts: the robot-side coupler and the tool-side coupler. The robot-side coupler is mounted on the end of the robot arm and is designed to hold the tool-side coupler securely in place. The tool-side coupler is attached to the end effector and is designed to fit securely into the robot-side coupler.

There are several different types of robot tool changers, including manual, semi-automatic, and automatic. Manual tool changers require human intervention to remove and replace tools, while semi-automatic tool changers require some level of automation, such as the use of pneumatic or hydraulic systems, to assist with the tool change. Automatic tool changers are fully automated and use electric motors or other actuators to switch between tools.

Regardless of the type of tool changer, they all typically have some form of locking mechanism to ensure that the tool is securely held in place during operation. Some tool changers also have sensors to detect when a tool is properly locked in place or to detect the presence of a tool in the coupler.

In summary, a robot tool changer is a mechanism used to quickly and efficiently switch between different end effectors on a robot arm. It typically consists of a robot-side coupler and a tool-side coupler, with various locking mechanisms and sensors to ensure safe and accurate tool changes.
