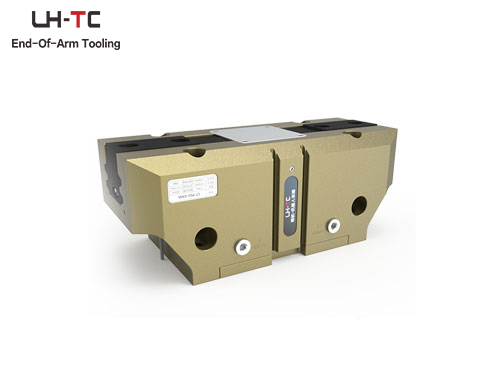

LT-PG2-240 Series

Advantages – Your Benefits

Stroke per jaw: 30mm/17mm Recommended workpiece weight: 19.4-33kg

30 million opening and closing fatigue tests without destructive.

Long storke two-finger manipulator wider gripping space.

Multi-tooth guide rail design grabbing various tools precisely

Self-lubrication design extends maintenance intervals

Standard solutions for multiple application fields

Chat Online Inquiry Now

Optional Extension Model

LT-PG2-240A

LT-PG2-240A

Description: Basic

Stroke per jaw (mm) 30
Closing force (N) 3880
Min. spring force (N) /
Opening force (N) 4080
Recommended workpiece weight (kg) 19.4
Weight (kg) 7.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.45/0.45
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 650
Max finger length (mm) 320
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240A-CFM

LT-PG2-240A-CFM

Description: Closing force hold

Stroke per jaw (mm) 30
Closing force (N) 4980
Min. spring force (N) 1100
Opening force (N) /
Recommended workpiece weight (kg) 19.4
Weight (kg) 10
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.65/0.35
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 800
Max finger length (mm) 280
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-200A-OFM

LT-PG2-200A-OFM

Description: Opening force hold

Stroke per jaw (mm) 30
Closing force (N) /
Min. spring force (N) 1100
Opening force (N) 5180
Recommended workpiece weight (kg) 19.4
Weight (kg) 9.7
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.35/0.65
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 1000
Max finger length (mm) 280
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240A-DP

LT-PG2-240A-DP

Description: Dustproof

Stroke per jaw (mm) 25
Closing force (N) 3880
Min. spring force (N) /
Opening force (N) 4080
Recommended workpiece weight (kg) 19.4
Weight (kg) 7.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.45/0.45
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 650
Max finger length (mm) 320
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240B

LT-PG2-240B

Description: Basic

Stroke per jaw (mm) 17
Closing force (N) 6640
Min. spring force (N) /
Opening force (N) 6980
Recommended workpiece weight (kg) 33
Weight (kg) 8.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.45/0.45
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 650
Max finger length (mm) 280
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240B-CFM

LT-PG2-240B-CFM

Description: Closing force hold

Stroke per jaw (mm) 17
Closing force (N) 4980
Min. spring force (N) 1900
Opening force (N) /
Recommended workpiece weight (kg) 33
Weight (kg) 10.3
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.65/0.35
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 800
Max finger length (mm) 240
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240B-OFM

LT-PG2-240B-OFM

Description: Opening force hold

Stroke per jaw (mm) 17
Closing force (N) /
Min. spring force (N) 1900
Opening force (N) 5180
Recommended workpiece weight (kg) 33
Weight (kg) 10
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.35/0.65
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 1000
Max finger length (mm) 240
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG2-240B-DP

LT-PG2-240B-DP

Description: Dustproof

Stroke per jaw (mm) 17
Closing force (N) 6640
Min. spring force (N) /
Opening force (N) 4080
Recommended workpiece weight (kg) 33
Weight (kg) 8.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.45/0.45
Repetition accuracy (mm) 0.04
Air consumption (round-trip) 650
Max finger length (mm) 280
Moment Mx(N·m) 260
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information
