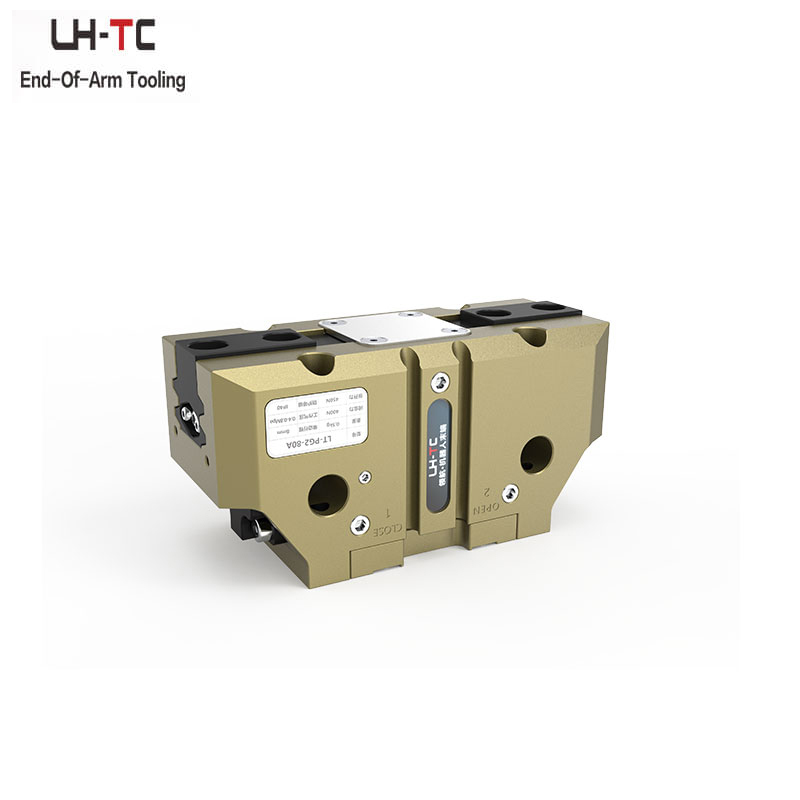

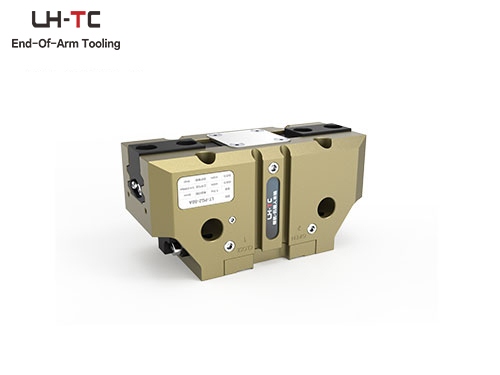

LT-PG2-80 Series

Advantages – Your Benefits

Stroke per jaw: 8mm/4mm Recommended workpiece weight: 2-7.6kg

Small long range lightweight manipulator

Sensitive sensor sensing block with higher flexibility

Self lubricating design ensures reliable clamping

Used for clamping and handling of small and medium-sized components

Chat Online Inquiry Now

Optional Extension Model

LT-PG2-80A

LT-PG2-80A

Description: Basic

Stroke per jaw (mm) 8
Closing force (N) 400
Min. spring force (N) /
Opening force (N) 450
Recommended workpiece weight (kg) 2
Weight (kg) 0.5
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.04/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 22
Max finger length (mm) 110
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80A-CFM

LT-PG2-80A-CFM

Description: Closing force hold

Stroke per jaw (mm) 8
Closing force (N) 555
Min. spring force (N) 155
Opening force (N) /
Recommended workpiece weight (kg) 2
Weight (kg) 0.61
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.05/0.03
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 35
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80A-OFM

LT-PG2-80A-OFM

Description: Opening force hold

Stroke per jaw (mm) 8
Closing force (N) /
Min. spring force (N) 155
Opening force (N) 605
Recommended workpiece weight (kg) 2
Weight (kg) 0.59
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.03/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 40
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80A-DP

LT-PG2-80A-DP

Description: Dustproof

Stroke per jaw (mm) 8
Closing force (N) 400
Min. spring force (N) /
Opening force (N) 450
Recommended workpiece weight (kg) 2
Weight (kg) 0.66
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.04/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 22
Max finger length (mm) 110
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80B

LT-PG2-80B

Description: Basic

Stroke per jaw (mm) 4
Closing force (N) 760
Min. spring force (N) /
Opening force (N) 860
Recommended workpiece weight (kg) 3.8
Weight (kg) 0.52
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.04/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 22
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80B-CFM

LT-PG2-80B-CFM

Description: Closing force hold

Stroke per jaw (mm) 4
Closing force (N) 1075
Min. spring force (N) 315
Opening force (N) /
Recommended workpiece weight (kg) 3.8
Weight (kg) 0.63
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.05/0.03
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 35
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80B-OFM

LT-PG2-80B-OFM

Description: Opening force hold

Stroke per jaw (mm) 4
Closing force (N) /
Min. spring force (N) 315
Opening force (N) 1175
Recommended workpiece weight (kg) 3.8
Weight (kg) 0.61
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.03/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 40
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG2-80B-DP

LT-PG2-80B-DP

Description: Dustproof

Stroke per jaw (mm) 4
Closing force (N) 760
Min. spring force (N) /
Opening force (N) 860
Recommended workpiece weight (kg) 3.8
Weight (kg) 0.68
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.04/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 22
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information
