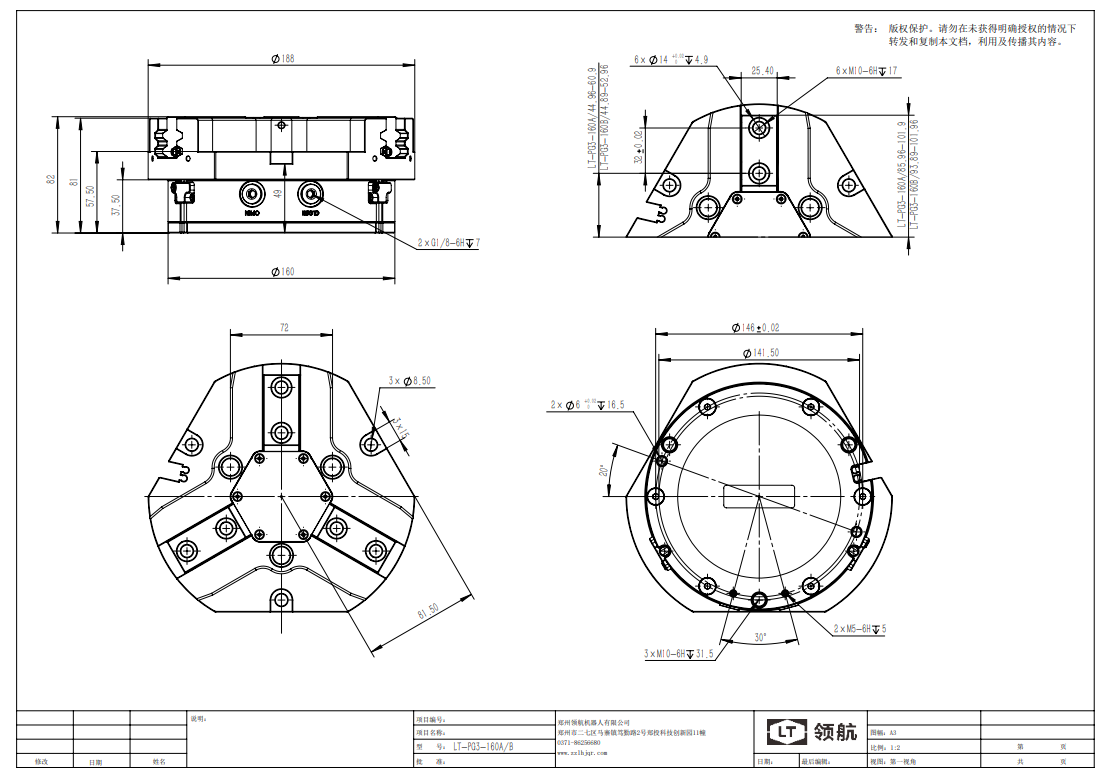

Model: LT-PG3-160B
PO: 4165
Stroke per jaw: 8mm
Closing force:10160N Opening force: 10860N
Max operating temperature: 90 ℃
Combination of multi tooth guide rail and trapezoidal structure. Meet the requirements of bearing greater moment and bending moment
Patented plating process,Ensure the precision is almost lossless after tens of thousands of times of grinding
Self lubricating design ensures reliable clamping
| Stroke per jaw (mm) | Min. spring force (N) | Closing force (N) | Opening force (N) | Recommended workpiece weight (kg) | Weight (kg) |
| 8 | / | 10160 | 10860 | 50.8 | 5.1 |
| Min air pressure (Mpa) | Rated air pressure (Mpa) | Max air pressure (Mpa) | IP Grade (IP) | Opening/Closing time (s) | Repetition accuracy (mm) |
| 0.4 | 0.6 | 0.8 | IP40 | 0.5/0.5 | 0.02 |
| Air consumption (round-trip) | Max finger length (mm) | Max finger weight (kg) | Moment Mx(N·m) | Moment My(N·m) | Moment Mz(N·m) |
| 500 | 210 | 3.5 | 170 | 180 | 130 |
| Max. force axial Fz(N) | |||||
| 4300 |
