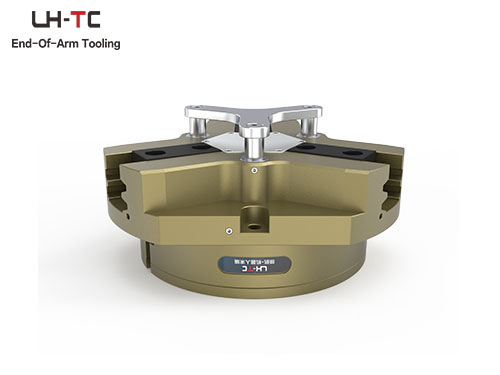

LT-PG3-200 Series

Advantages – Your Benefits

Stroke per jaw: 25mm/14mm Recommended workpiece weight: 37-91kg

Universal three finger manipulator

Self-lubrication design Ensure reliable clamping

Lubrication groove design Extends maintenance intervals

Standard solutions for multiple application fields

Chat Online Inquiry Now

Optional Extension Model

LT-PG3-200A

LT-PG3-200A

Description: Basic

Stroke per jaw (mm) 25
Closing force (N) 7400
Min. spring force (N) /
Opening force (N) 7790
Recommended workpiece weight (kg) 37
Weight (kg) 9.6
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1050
Max finger length (mm) 280
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200A-CFM

LT-PG3-200A-CFM

Description: Closing force hold

Stroke per jaw (mm) 25
Closing force (N) 10100
Min. spring force (N) 2700
Opening force (N) /
Recommended workpiece weight (kg) 37
Weight (kg) 10.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1/1.5
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1730
Max finger length (mm) 240
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200A-OFM

LT-PG3-200A-OFM

Description: Opening force hold

Stroke per jaw (mm) 25
Closing force (N) /
Min. spring force (N) 2700
Opening force (N) 10490
Recommended workpiece weight (kg) 37
Weight (kg) 10.8
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1050
Max finger length (mm) 240
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200A-DP

LT-PG3-200A-DP

Description: Dustproof

Stroke per jaw (mm) 25
Closing force (N) 7400
Min. spring force (N) /
Opening force (N) 5770
Recommended workpiece weight (kg) 37
Weight (kg) 10.6
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1050
Max finger length (mm) 280
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200B

LT-PG3-200B

Description: Basic

Stroke per jaw (mm) 14
Closing force (N) 12670
Min. spring force (N) /
Opening force (N) 13300
Recommended workpiece weight (kg) 63
Weight (kg) 9.8
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1050
Max finger length (mm) 240
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200B-CFM

LT-PG3-200B-CFM

Description: Closing force hold

Stroke per jaw (mm) 25
Closing force (N) 17345
Min. spring force (N) 4675
Opening force (N) /
Recommended workpiece weight (kg) 63
Weight (kg) 11.1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1/1.5
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1730
Max finger length (mm) 200
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200B-OFM

LT-PG3-200B-OFM

Description: Opening force hold

Stroke per jaw (mm) 14
Closing force (N) /
Min. spring force (N) 4675
Opening force (N) 17975
Recommended workpiece weight (kg) 63
Weight (kg) 11
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.5/1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1730
Max finger length (mm) 200
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information

LT-PG3-200B-DP

LT-PG3-200B-DP

Description: Dustproof

Stroke per jaw (mm) 14
Closing force (N) 12670
Min. spring force (N) /
Opening force (N) 13300
Recommended workpiece weight (kg) 63
Weight (kg) 10.8
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1050
Max finger length (mm) 240
Moment Mx(N·m) 180
Max finger weight (kg) 6.5
Moment My(N·m) 140
Max. force axial Fz(N) 5000
Moment Mz(N·m) 200

More product information Less product information
