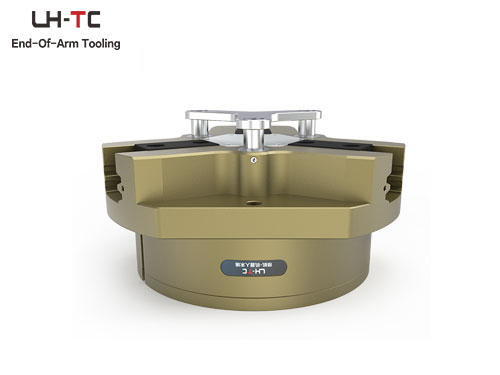

LT-PG3-240 Series

Advantages – Your Benefits

Stroke per jaw: 30mm/17mm Recommended workpiece weight: 53kg-91kg

Universal three finger manipulator

Self-lubrication design Ensure reliable clamping

Lubrication groove design Extends maintenance intervals

Standard solutions for multiple application fields

Chat Online Inquiry Now

Optional Extension Model

LT-PG3-240A

LT-PG3-240A

Description: Basic

Stroke per jaw (mm) 30
Closing force (N) 10700
Min. spring force (N) /
Opening force (N) 11400
Recommended workpiece weight (kg) 53
Weight (kg) 17
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.25/1.25
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1800
Max finger length (mm) 300
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240B

LT-PG3-240B

Description: Basic

Stroke per jaw (mm) 17
Closing force (N) 18300
Min. spring force (N) /
Opening force (N) 19500
Recommended workpiece weight (kg) 53
Weight (kg) 19
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.25/1.25
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1800
Max finger length (mm) 250
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240A-CFM

LT-PG3-240A-CFM

Description: Closing force hold

Stroke per jaw (mm) 30
Closing force (N) 14875
Min. spring force (N) 4175
Opening force (N) /
Recommended workpiece weight (kg) 53
Weight (kg) 19.1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.1/2.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 250
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240B-CFM

LT-PG3-240B-CFM

Description: Closing force hold

Stroke per jaw (mm) 17
Closing force (N) 17345
Min. spring force (N) 4175
Opening force (N) /
Recommended workpiece weight (kg) 91
Weight (kg) 19.5
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.1/2.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 200
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240A-OFM

LT-PG3-240A-OFM

Description: Opening force hold

Stroke per jaw (mm) 30
Closing force (N) 14875
Min. spring force (N) 4175
Opening force (N) /
Recommended workpiece weight (kg) 53
Weight (kg) 19.1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.1/2.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 250
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240B-OFM

LT-PG3-240B-OFM

Description: Opening force hold

Stroke per jaw (mm) 17
Closing force (N) /
Min. spring force (N) 4175
Opening force (N) 26730
Recommended workpiece weight (kg) 91
Weight (kg) 19.4
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.7/1.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 200
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240A-DP

LT-PG3-240A-DP

Description: Dustproof

Stroke per jaw (mm) 30
Closing force (N) 10700
Min. spring force (N) /
Opening force (N) 11400
Recommended workpiece weight (kg) 53
Weight (kg) 18.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.25/1.25
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1800
Max finger length (mm) 300
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240B-DP

LT-PG3-240B-DP

Description: Dustproof

Stroke per jaw (mm) 17
Closing force (N) 18300
Min. spring force (N) /
Opening force (N) 13300
Recommended workpiece weight (kg) 91
Weight (kg) 18.6
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.1/2.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 200
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information
