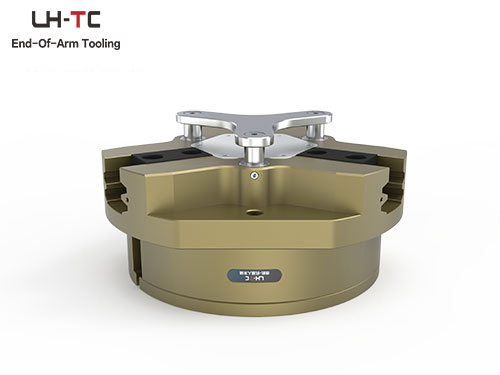

LT-PG3-300 Series

Advantages – Your Benefits

Stroke per jaw: 45mm/26mm Recommended workpiece weight: 43.5kg-74kg

Universal three finger manipulator

Self-lubrication design Ensure reliable clamping

Lubrication groove design Extends maintenance intervals

Standard solutions for multiple application fields

Chat Online Inquiry Now

Optional Extension Model

LT-PG3-300A

LT-PG3-300A

Description: Basic

Stroke per jaw (mm) 35
Closing force (N) 14400
Min. spring force (N) /
Opening force (N) 15100
Recommended workpiece weight (kg) 72
Weight (kg) 32
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.3/1.3
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 2900
Max finger length (mm) 250
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-300B

LT-PG3-300B

Description: Basic

Stroke per jaw (mm) 20
Closing force (N) 24600
Min. spring force (N) /
Opening force (N) 25800
Recommended workpiece weight (kg) 123
Weight (kg) 32
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 1.3/1.3
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 2900
Max finger length (mm) 225
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-300A-CFM

LT-PG3-300A-CFM

Description: Closing force hold

Stroke per jaw (mm) 35
Closing force (N) 20800
Min. spring force (N) 6400
Opening force (N) /
Recommended workpiece weight (kg) 72
Weight (kg) 34
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.2/2.5
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 5100
Max finger length (mm) 225
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-300B-CFM

LT-PG3-300B-CFM

Description: Closing force hold

Stroke per jaw (mm) 20
Closing force (N) 35600
Min. spring force (N) 11000
Opening force (N) /
Recommended workpiece weight (kg) 123
Weight (kg) 34
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 1.2/2.5
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 5100
Max finger length (mm) 200
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-300A-OFM

LT-PG3-300A-OFM

Description: Opening force hold

Stroke per jaw (mm) 35
Closing force (N) /
Min. spring force (N) 6400
Opening force (N) 21500
Recommended workpiece weight (kg) 72
Weight (kg) 35
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 5100
Max finger length (mm) 225
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-300B-OFM

LT-PG3-300B-OFM

Description: Opening force hold

Stroke per jaw (mm) 20
Closing force (N) /
Min. spring force (N) 11000
Opening force (N) 36800
Recommended workpiece weight (kg) 123
Weight (kg) 35
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 2/1.2
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 5100
Max finger length (mm) 200
Moment Mx(N·m) 400
Max finger weight (kg) 11.5
Moment My(N·m) 400
Max. force axial Fz(N) 8000
Moment Mz(N·m) 280

More product information Less product information

LT-PG3-240A-DP

LT-PG3-240A-DP

Description: Dustproof

Stroke per jaw (mm) 30
Closing force (N) 10700
Min. spring force (N) /
Opening force (N) 11400
Recommended workpiece weight (kg) 53
Weight (kg) 18.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.25/1.25
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 1800
Max finger length (mm) 300
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information

LT-PG3-240B-DP

LT-PG3-240B-DP

Description: Dustproof

Stroke per jaw (mm) 17
Closing force (N) 18300
Min. spring force (N) /
Opening force (N) 13300
Recommended workpiece weight (kg) 91
Weight (kg) 18.6
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 1.1/2.1
Repetition accuracy (mm) 0.05
Air consumption (round-trip) 3100
Max finger length (mm) 200
Moment Mx(N·m) 265
Max finger weight (kg) 8.5
Moment My(N·m) 160
Max. force axial Fz(N) 6200
Moment Mz(N·m) 250

More product information Less product information
