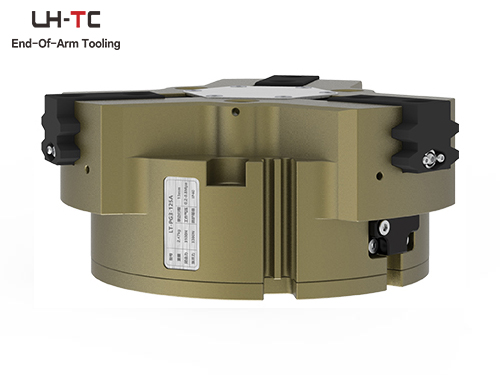

LT-PG3-80 Series

Advantages – Your Benefits

Stroke per jaw: 8mm/4mm4.9 Recommended workpiece weight: 4.9-18.9kg

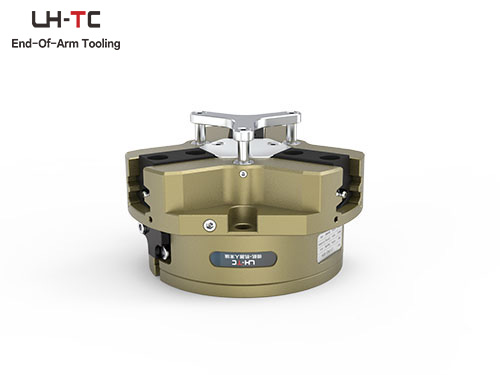

Universal three finger manipulator

Self-lubrication design Ensure reliable clamping

Lubrication groove design Extends maintenance intervals

Sensitive sensor sensing faster and higher flexibility

Chat Online Inquiry Now

Optional Extension Model

LT-PG3-80A

LT-PG3-80A

Description: Basic

Stroke per jaw (mm) 8
Closing force (N) 990
Min. spring force (N) /
Opening force (N) 1070
Recommended workpiece weight (kg) 4.9
Weight (kg) 0.85
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.05/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 60
Max finger length (mm) 110

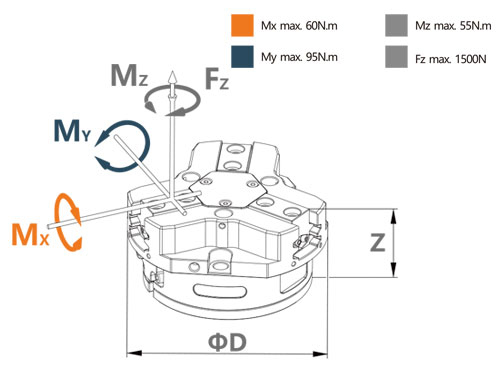

Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG3-80B

LT-PG3-80B

Description: Basic

Stroke per jaw (mm) 4
Closing force (N) 1890
Min. spring force (N) /
Opening force (N) 2060
Recommended workpiece weight (kg) 9.5
Weight (kg) 0.85
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.05/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 60
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

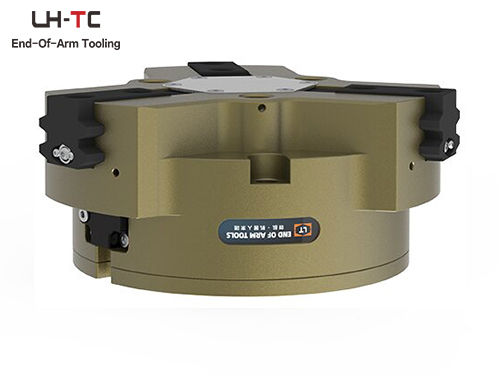

LT-PG3-80A-CFM

LT-PG3-80A-CFM

Description: Closing force hold

Stroke per jaw (mm) 8
Closing force (N) 1340
Min. spring force (N) 350
Opening force (N) /
Recommended workpiece weight (kg) 4.9
Weight (kg) 1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.06/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 108
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG3-80B-CFM

LT-PG3-80B-CFM

Description: Closing force hold

Stroke per jaw (mm) 4
Closing force (N) 2600
Min. spring force (N) 710
Opening force (N) /
Recommended workpiece weight (kg) 9.51
Weight (kg) 1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.06/0.04
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 108
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

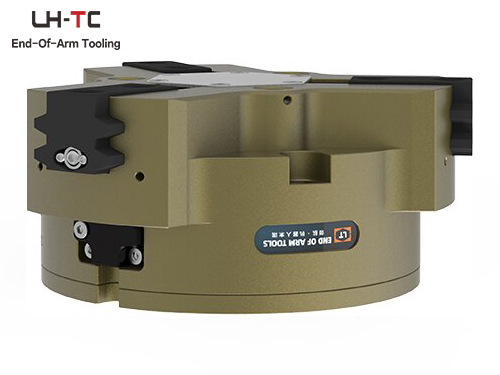

LT-PG3-80A-OFM

LT-PG3-80A-OFM

Description: Opening force hold

Stroke per jaw (mm) 8
Closing force (N) /
Min. spring force (N) 350
Opening force (N) 1420
Recommended workpiece weight (kg) 4.9
Weight (kg) 1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.04/0.06
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 108
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG3-80B-OFM

LT-PG3-80B-OFM

Description: Opening force hold

Stroke per jaw (mm) 4
Closing force (N) /
Min. spring force (N) 350
Opening force (N) 2410
Recommended workpiece weight (kg) 9.5
Weight (kg) 1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.04/0.06
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 108
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG3-80A-DP

LT-PG3-80A-DP

Description: Dustproof

Stroke per jaw (mm) 8
Closing force (N) 990
Min. spring force (N) /
Opening force (N) 1070
Recommended workpiece weight (kg) 4.9
Weight (kg) 0.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.05/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 120
Max finger length (mm) 100
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information

LT-PG3-80B-DP

LT-PG3-80B-DP

Description: Dustproof

Stroke per jaw (mm) 4
Closing force (N) 1890
Min. spring force (N) /
Opening force (N) 2060
Recommended workpiece weight (kg) 9.5
Weight (kg) 0.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.05/0.05
Repetition accuracy (mm) 0.01
Air consumption (round-trip) 60
Max finger length (mm) 105
Moment Mx(N·m) 60
Max finger weight (kg) 0.6
Moment My(N·m) 95
Max. force axial Fz(N) 1500
Moment Mz(N·m) 55

More product information Less product information
