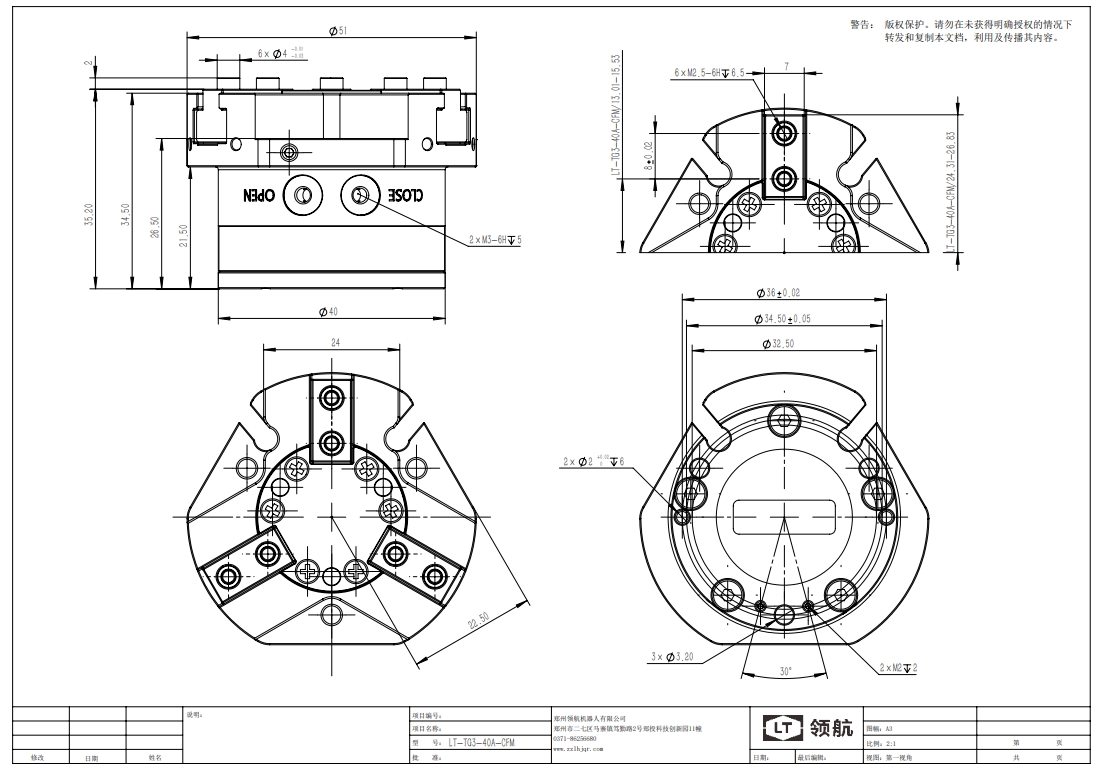

Model: LT-TG3-40A-CFM
Stroke per jaw: 2.5mm
Closing force: 350N Min. spring force: 100N
Max operating temperature: 90 ℃
The perfect combination of T-type guide rail and trapezoidal structure can meet the requirements of bearing greater torque and bending moment
The coating process ensures that the precision is almost lossless after millions of grindings
Self-lubricating design, longer maintenance-free service life
| Stroke per jaw (mm) | Min. spring force (N) | Closing force (N) | Opening force (N) | Recommended workpiece weight (kg) | Weight (kg) |
| 2.5 | 100 | 350 | / | 1.25 | 0.14 |
| Min air pressure (Mpa) | Rated air pressure (Mpa) | Max air pressure (Mpa) | IP Grade (IP) | Opening/Closing time (s) | Repetition accuracy (mm) |
| 0.4 | 0.6 | 0.8 | IP40 | 0.02/0.03 | 0.01 |
| Air consumption (round-trip) | Max finger length (mm) | Max finger weight (kg) | Moment Mx(N·m) | Moment My(N·m) | Moment Mz(N·m) |
| 9.0 | 45 | 0.1 | 8 | 10 | 4 |
| Max. force axial Fz(N) | |||||
| 200 |
