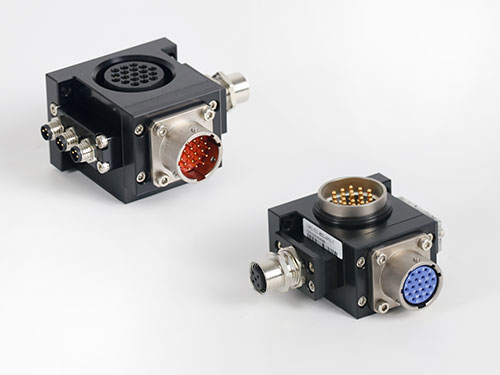

CC-link Bus Module

Model: LMO-F21-S13-BI03-AF01

Robot Side PO:0553

Tool Side PO:0554

Suitable for CC-Link

Module Introduction

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.

Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.

Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.

Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .

Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.

PO Model Configuration Parameter Connector configuration Weight(KG)
Robot side 0553 LMO-F21-S13-BI03-AF01-M 7 / 8-5 pin 9A independent bus power supply
M12-5 pin a coding bus interface
3A * 13 pin current / signal transmission
Rd stable connection technology
German high performance probe
Support tool identification (0-7)
Aluminum alloy protective shell
Built in arc extinguishing module
LHTC  Y50P-1626TK5-2 0.23
Tool side  0554 LMO-F21-S13-BI03-AF01-T LHTC  Y50P-1626TK5-2 0.21
