Robot Side PO：1113
Tool Side PO：1114
Suitable for Ethernet, EtherNetIP, EtherCAT, PROFINET

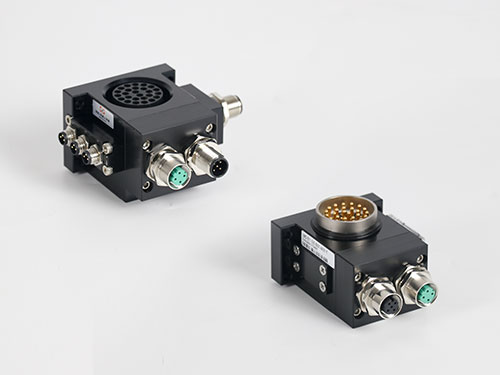

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.
Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.
Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.
Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .
Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.
|PO||Model||Configuration Parameter||Connector configuration||Weight(KG)|
|Robot side||1113||LMO-E11-S05-BI01-AF01-M||M12-5 pin bus power
M12-4 pins D-code bus interface
RD tech/German high performance probe
Standard tool identification (0-7)
aluminium alloy shell
