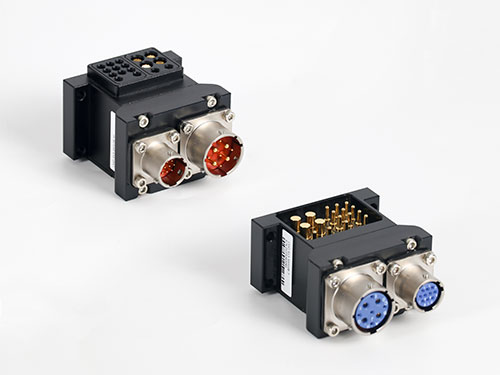

Servo Module

Model: LMO-E13-SM10B

Robot Side PO:0509

Tool Side PO:0510

Module Introduction

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.

Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.

Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.

Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .

Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.

PO Model Configuration Parameter Optional Unit Connector configuration Weight(KG)
Robot side 0509 LMO-E13-SM10B-M 12A*4pins currenty transmission
3A*2pins brake signal2A*10pins encoder signal transmission German high performance probeAluminum alloy shell
LHTC Y50EX-1409TK5-2

LHTC Y50P-1010TK5-1

0.313
Tool side 0510 LMO-E13-SM10B-T LHTC Y50EX-1409TJ5-2

LHTC Y50P-1010TJ5-1

0.284
