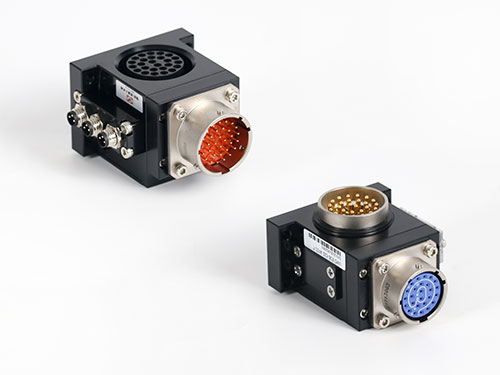

22 Pins Signal Module

Model: LMO-E16-S22-AF01

Robot Side PO:0589

Tool Side PO:0590

Module Introduction

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.

Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.

Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.

Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .

Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.

PO Model Configuration Parameter Optional Unit Weight(KG)
Robot side LM0589 LMO-E16-S22-AF01-M 3A*22pin signal modules

Integrated 3R Signal

Standard Tool-ID(0-7)

Aluminum Alloy shell

Standard adaptor connector

Integrated solenoid module

Air pressure detection



0.23
Tool side LM0590 LMO-E16-S22-AF01-T Active safe parking 0.21
