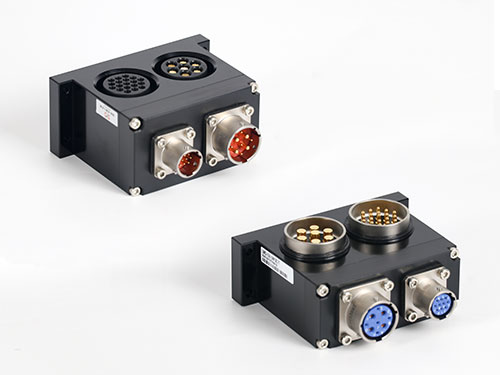

Servo Module

Model: LMO-F22-SM10C

Robot Side PO: F04050030

Tool Side PO: F04050031

Module Introduction

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.

Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.

Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.

Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .

Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.

PO Model Configuration Parameter Connector configuration Weight(KG)
Robot side F04050030 LMO-F22-SM10C-M 20A*4pins current transmission
2A*2pins brake signal
2A*8pins encoder signal transmission
RD stable connection technology
German high performance probe
Black aluminum alloy shell
LHTC Y50EX-1409TK5-2

LHTC Y50P-1010TK5-1

0561
Tool side F04050031 LMO-F22-SM10C-T LHTC Y50EX-1409TJ5-2

LHTC Y50P-1010TJ5-1

0.459
