Yaskawa Servo Spot Welding Module

Model: LMO-C31-SM03C-MS09

Robot Side PO:0877

Tool Side PO:0878

Module Introduction

The Modules LMO series of Linghang robot quick change system, it ensures the fast connection and stable transmission of all kinds of media between the robot side and the tool side, it can be easily installed on the tool quick change system, significantly improved the flexibility of the quick change system.

Connecting power, data, I/O, fluid and other media, it is widely used in various scenes including palletizing, transportation, vacuum, polishing, welding, laser, stamping, gluing, Ethernet, data acquisition, etc.

Due to the modular design, it can be adjusted unlimited for robot application and adapt to different production processes and new technologies.

Based on tens of thousands of application cases ,LMO series has more than 1000 different types of products, which can easily solve all kinds of robot applications .

Due to the continuous introduction of new atechnologies, LMO series products are constantly updated, and support customization.

PO Model Configuration Parameter Connector configuration Weight(KG)

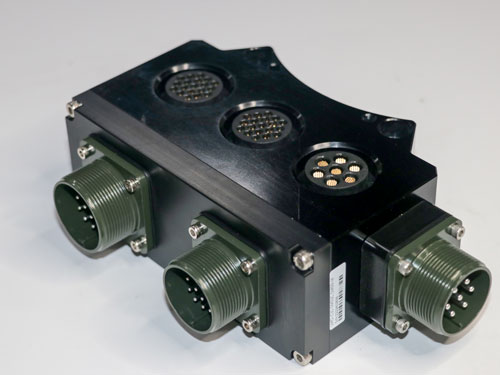

Robot side LM0877 LMO-C31-SM03C-MS09-M 20A*4pins current transmission

3A * 17 pins band brake and encoder signal transmission

5A * 9pins signal transmission

German high performance probe

Black aluminum alloy shell



American Standard 20-15 + 20-29 servo connector
American Standard 22-19 pin signal connector
0.85

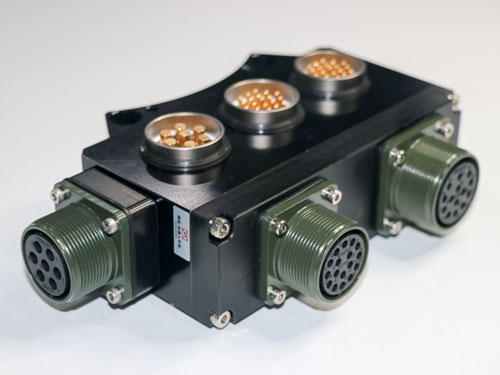

Tool side LM0878 LMO-C31-SM03C-MS09-T American Standard connector 0.75
