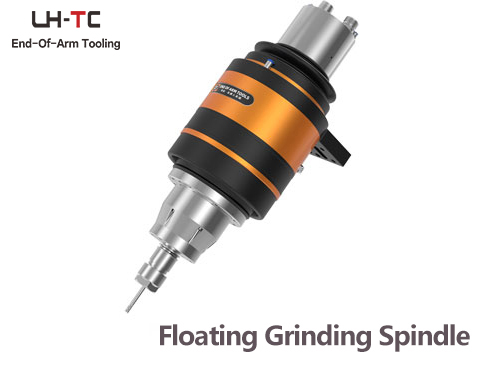

Model: LT-6000
High speed, high efficiency, large chip volume
Low residue, excellent results
Support automatic tool holder replacement
| Mode No. | LT-6000 |
| Maximum speed | 36000rpm |
| Rated speed | 20000rpm |
| Rated power (S1-100%) | 6KW |
| Rated current (S1-100%) | 13A |
| Rated torque (S1-100%) | 2.8Nm |
| Voltage | 380V |
| Spindle cooling method | water cooling |
| Spindle cooling air pipe | Φ10 |
| Tool change air intake pipe | Φ6 |
| Spindle air seal | Φ6 |
| Floating angle (X,Y) | ±4° |
| float form | Radial 360°, 4°, axial floating 10mm |
| Floating force (vertical direction) | 96N-203.8N |
| Floatation air pipe | Φ6 |
| Floating force air pressure adjustable range | 0.1-0.4Mpa |

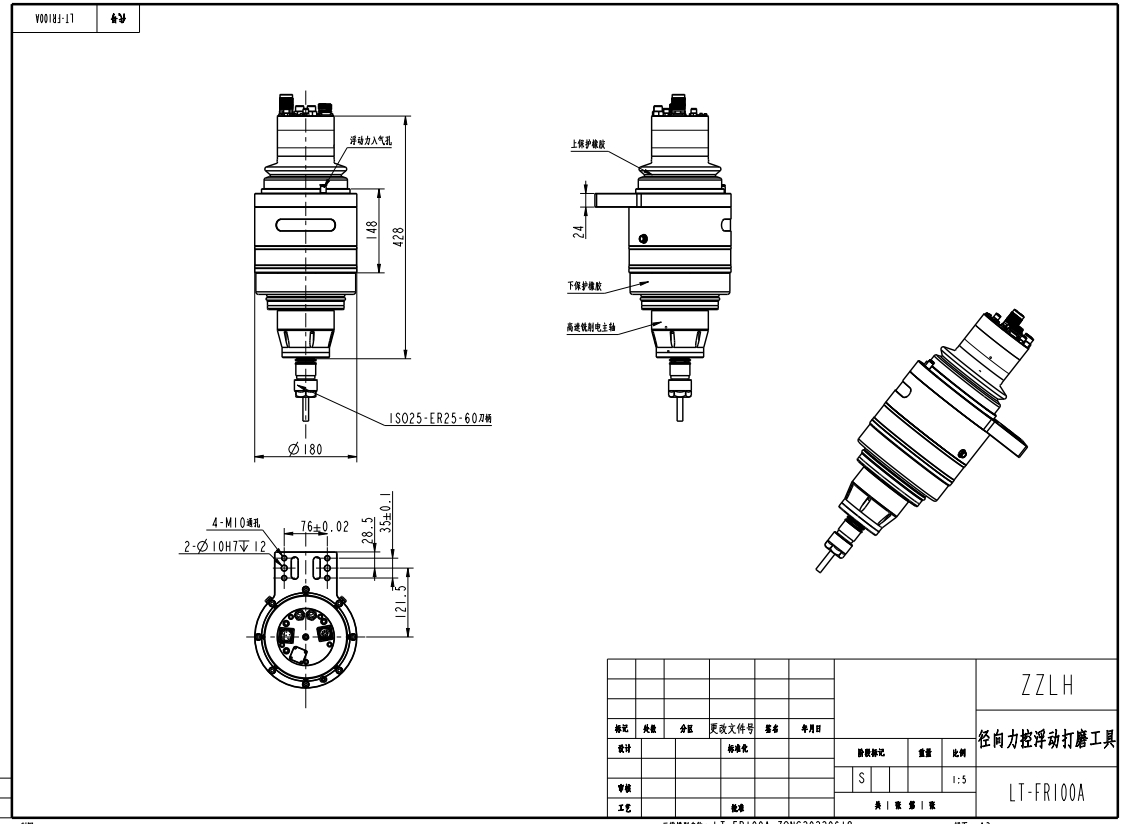

| Size | Φ180*488 |
| weight | 30.7kg |
| Automatic tool change (ISO25) Shank diameter | 10mm |
