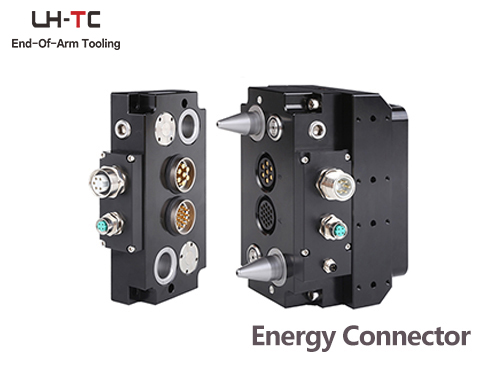

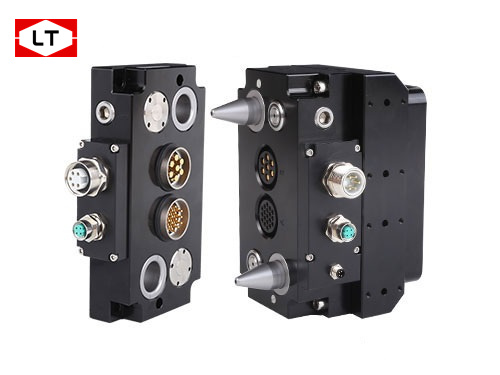

LT-F31 Utility Coupler

Model: LT-F31

Robot side PO:1650 Tool side PO:1651

Provide energy connection between master station and slave station

With X, y, Z, R direction floating performance, eliminate docking error

Modular design of media unit, more flexible collocation

Docking includes power, data, i/o, air, liquid and other media

Docking / separation status LED visible

Identification of slave station number in standard configuration of slave station

  • Introduction

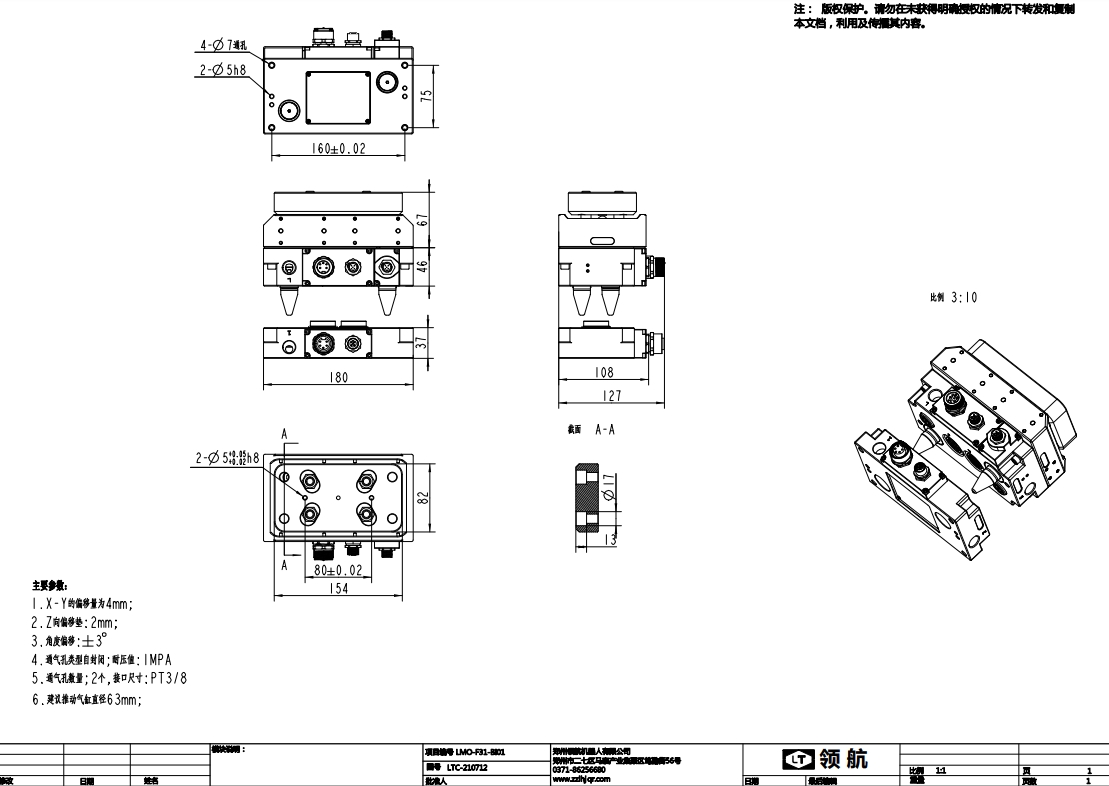

  • CAD Drawing
  • 3D Model
  • Optional Modules
  1. lIntegrated 2*PT3/8 self-seal pneumatic ports
  2. lBuilt in tool plate in position detection sensor
  3. lOptional servo motor or cylinder drive

Compensation range available:

  1. Compliance(X&Y Axis):±4mm
  2. Compliance(Z Axis):2mm
  3. Rotational Compliance:±3°
  4. Min.Coupling Force:≥1526N

Optional configuration:

Signal IO: Bus Control Servo and power electronics

 -19channelI/O

 -26channelI/O

 -38channelI/O

 -52channelI/O

-Profibus BUS pass

  -DeviceNetBUS pass

-EtherNetBUS pass

-ProfinetBUS pass

-CC-LinkBUS pass

-Servo motor

-12channel power

-power+signal
