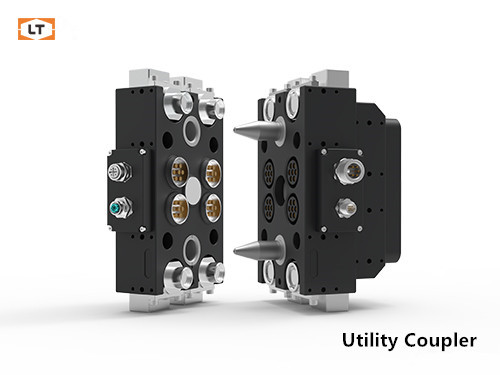

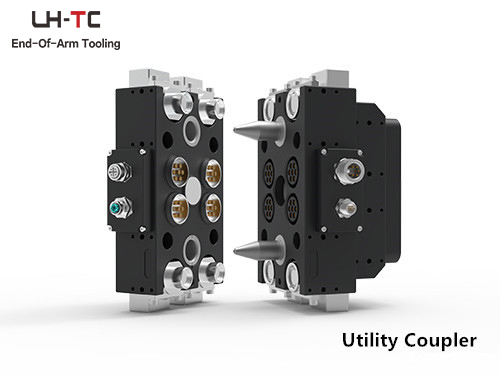

LT-F31C Utility Coupler

Model: LT-F31C

Provide energy connection between master station and slave station

With X, Y, Z  directional floating performance, eliminate docking error

Modular design of medium unit, more flexible configuration

Pass through medium such as electric power, data, i/o, air, liquid and other media

Integrated tool side in position detection sensor

Identification slave station number

  • Introduction
  • CAD Drawing
  • 3D Model
  1. Optional max 4 x PT1/2 pneumatic ports or Liquid ports
  2. Integrated tool plate in position detection sensor
  3. Optional driven way: Servo Motor or Pneumatic

Compensation available:

  1. Compliance(X&Y-Axis): ±4mm
  2. Compliance(Z-Axis): +2mm
  3. Rotational Compliance: ±3°
  4. Min.Coupling Force: ≥1526N

Optional configuration:

Signal IO: Industrial Bus Control: Servo motor connector: Electrical power: Air and liquid module:

 -19~130 channel avaliable

-Profibus

-DeviceNet

-EtherNet

-Profinet

-CC-Link

-Avaliable for ABB, KUKA, Fanuc, Yaskawa Servo motor interface

-Servo + signal interface is optional

-7~35 channel avaliable

-1~4 x PT1/2 pneumatic ports or Liquid ports avaliable
