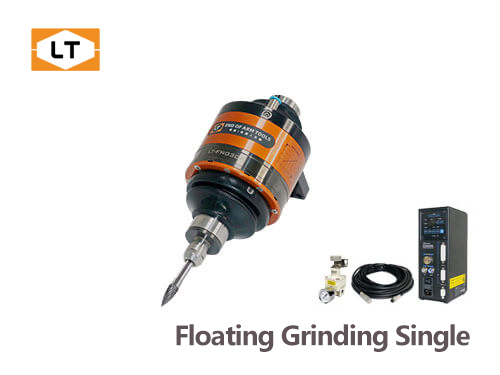

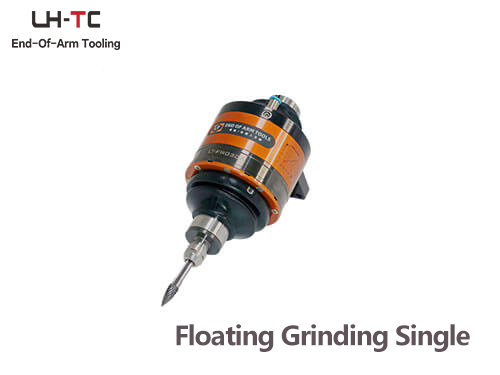

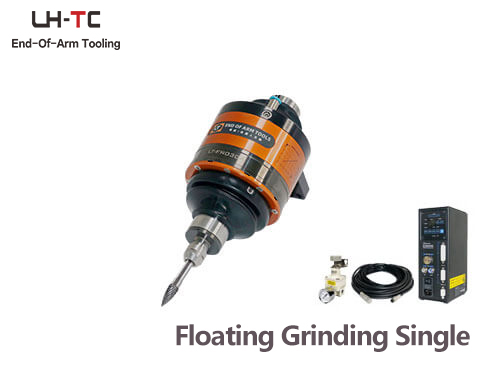

LT-FR030B-3030T Floating Grinding Spindle

Model: LT-FR030B-3030T

PO: 3170

Specializes in removing deburring and burring

Overcome surface irregularities

Replaceable standard industrial grinding heads

  • Introduction

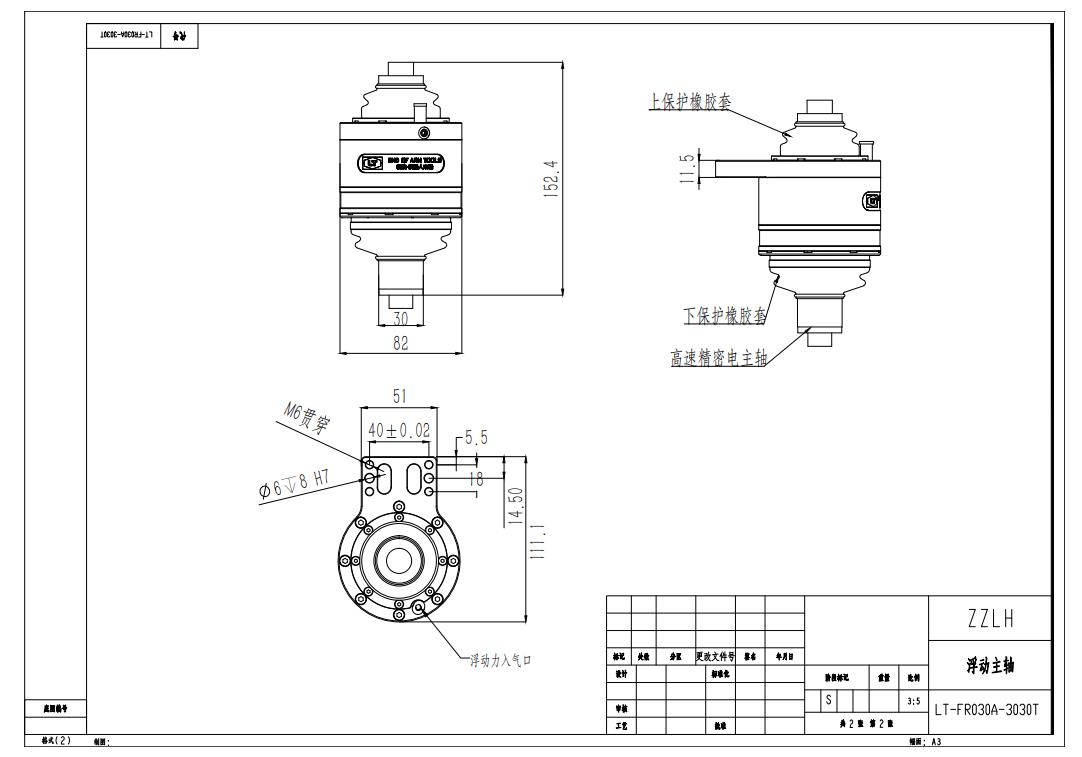

  • CAD Drawing
  • 3D Model
Mode No. LT-FR030B-3030T
Autorotation Rate 30000rpm
Power 350W
Floating Angle(X,Y) ±5°
Radial Floating Angle 360°
Axial Compliance 5mm
Floating Moment 7.2N-28.8N
Chatter 1μm
Diameter of Floating Air Pipes Φ4mm
Diameter of Spindle Air Pipes Φ3mm
Air Pressure Adjustable Range 0.1~0.4Mpa
Dimension Φ82mm*208mm
Weight 1815.6g
