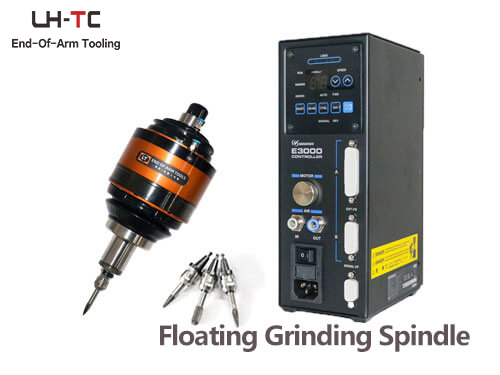

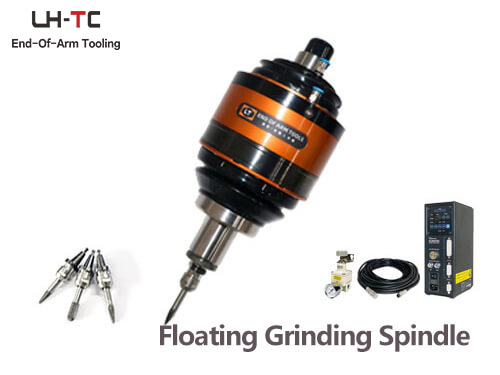

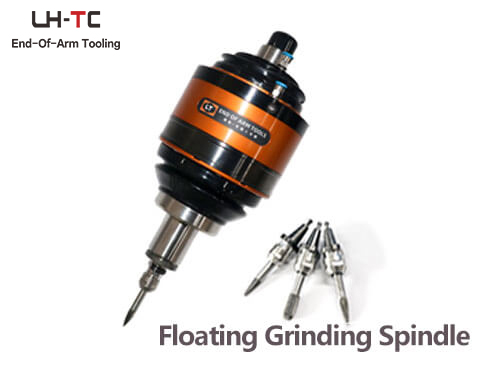

LT-FRC030B-3030T-J Deburring Tool

Model: LT-FRC030B-3030T-J

PO: F14020020

Position repetition accuracy less than 0.001mm;

Highly sensitive floating mechanism;

Spindle maximum rotate speed is 30000rpm; output torque maximum is 18 cN.m

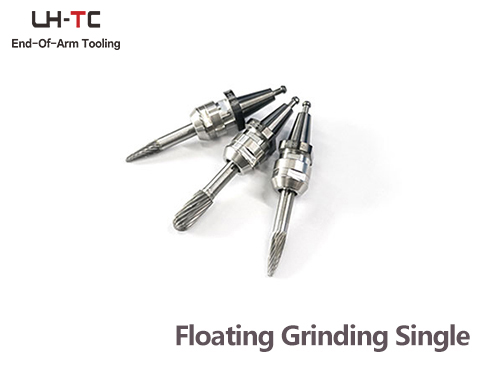

Support automatic tool change, meet complex deburring requirements

  • Introduction

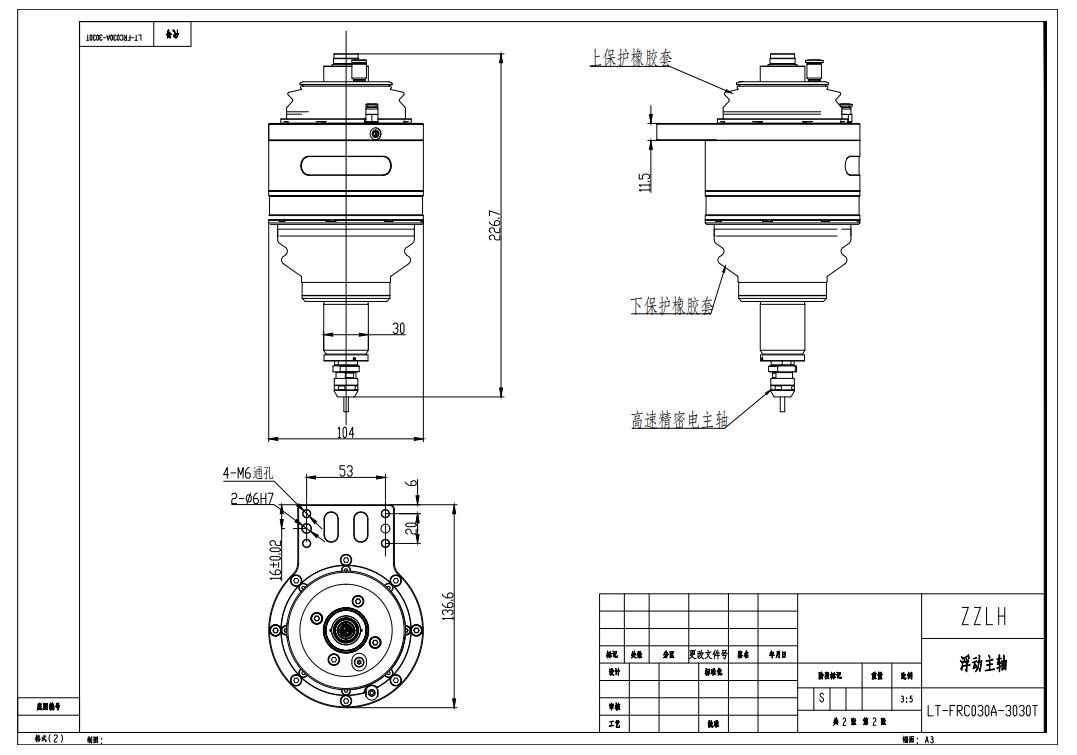

  • CAD Drawing
  • 3D Model
Mode No. LT-FRC030B-3030T-J
Autorotation Rate 30000rpm
Power 350W
Floating Angle(X,Y) ±5°
Radial Floating Angle Radial 360 ° floating (r≤5°);
Axial Compliance 7mm
Floating Moment 7.2N-28.8N
Chatter 1μm
Diameter of Floating Air Pipes Φ4mm
Diameter of Spindle Air Pipes Φ6mm
Air Pressure Adjustable Range 0.1~0.4Mpa
Dimension Φ104mm*266mm
Weight 3497.3g
Change The Knife Automatically diameter: 0.5~6.35mm
