Model: LTC-0010F
Robot Side PO: F01020007 Tool Side PO: F01020018

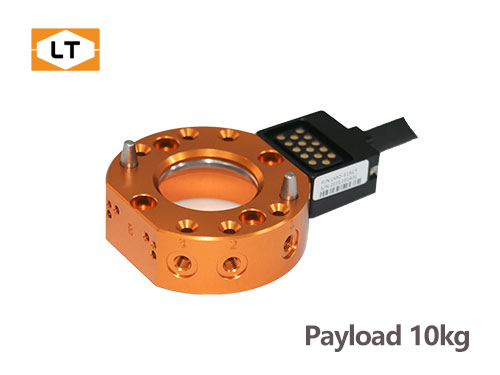

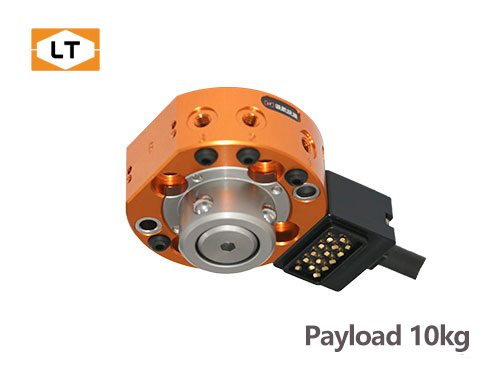

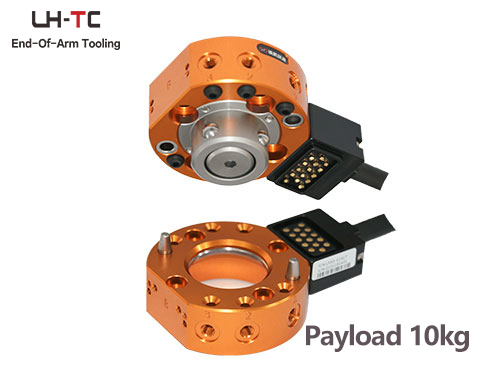

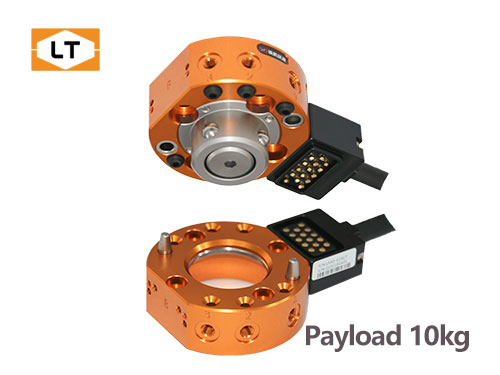

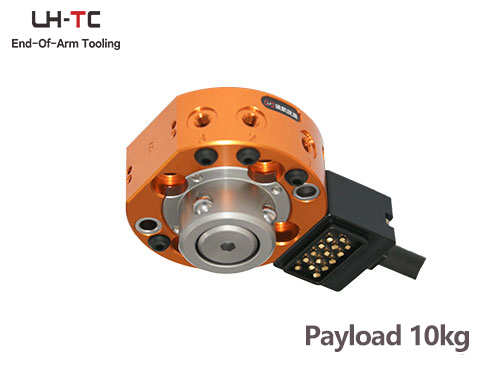

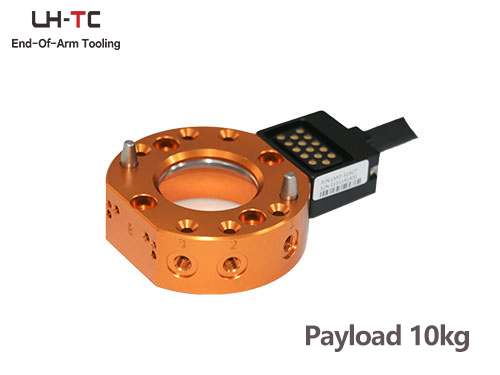

Recommended payload ≤ 10kg
Locking force: 1193N allowable moment: 26.5N·m (static) allowable torque: 35.7N·m(static)
6*M5 Pneumatic port connection and 2 module mounting interfaces
Suitable for assembly, handling, palletizing etc
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate
| Model | Master plate | LTC-0010FM |
| Tool plate | LTC-0010FT | |
| load | Payload capacity | 10kg |
| （when pressure 0.49Mpa）Locking Force | 1193N | |
| (static)Allowable moment | 26.5N·m | |
| (static)Allowable torque | 35.7N·m | |

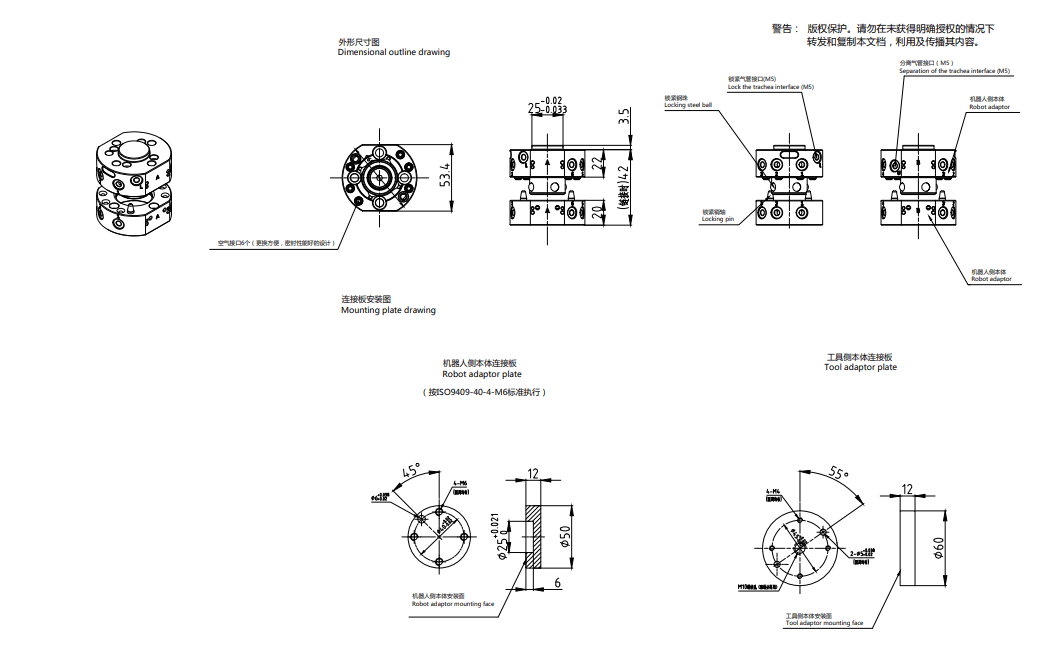

| Size and precision | Housing diameter | φ60mm |
| Combined profile | 42mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 0.24kg |
| Tool side | 0.09kg | |
| Air connector | Pneumatic port | 6 x M5 |
| Max pressure | 0.8Mpa | |
Electrical Module
| 8pins signal module | ||
|---|---|---|
| PO | F04010042 | F04010043 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-S08B | |
| Spec | 2A * 8Pins | |
| Weight | 0.087kg | 0.068kg |
| Details | ||
| 14pins Signal Module | ||
|---|---|---|
| PO | F04010058 | F04010059 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-S14A | |
| Spec | 2A * 14Pins | |
| Weight | 0.087kg | 0.068kg |
| Details | ||
High-Frequency Module
Servo Motor Module
Fluid&Air Module
| 4-way air supply module | ||
|---|---|---|
| PO | F03010015 | F03010016 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC04B | |
| Spec | 4*M5 | |
| Weight | 0.038kg | 0.034kg |
| Details | ||
Bus Module
