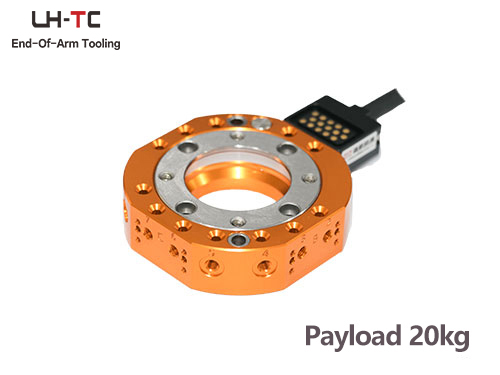

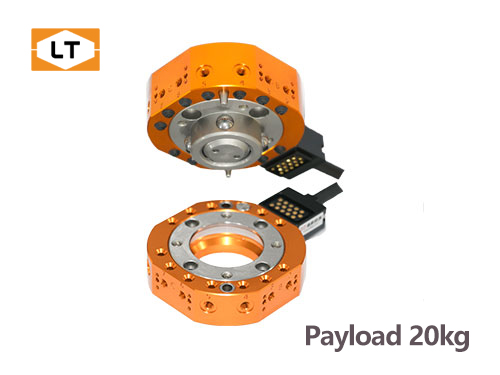

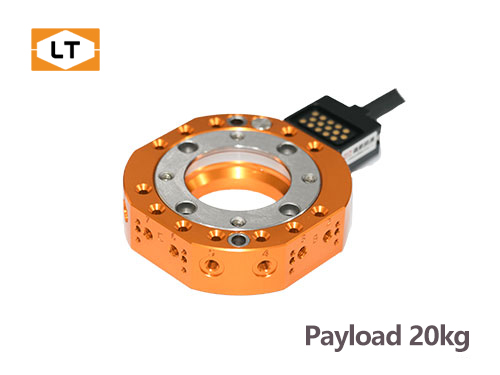

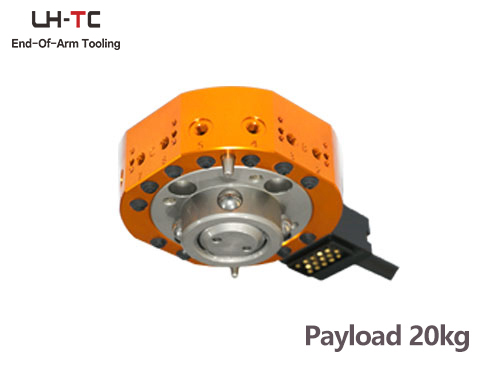

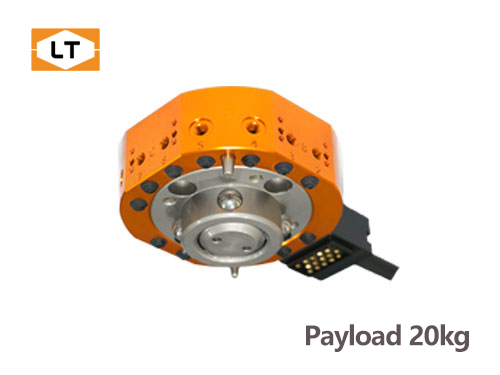

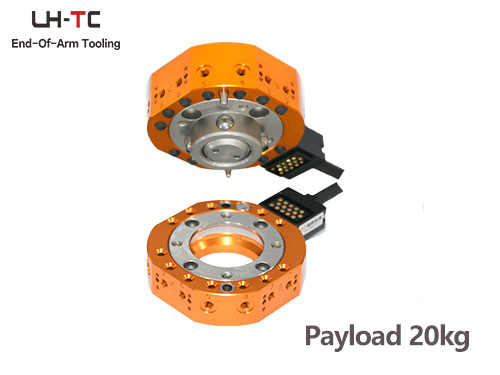

Model: LTC-0020E
Robot Side PO: F01030003 Tool Side PO: F01030007
Recommended payload ≤ 20kg
Locking force: 2514N allowable moment: 58.6N·m (static) allowable torque: 80N·m (static)
12*M5 pneumatic port connection and 4 module mounting interfaces
Suitable for assembly, handling, ultrasonic welding,etc
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.
| Model | Master plate | LTC-0020EM |
| Tool plate | LTC-0020ET | |
| load | Payload capacity | 20kg |
| Locking force（When pressure 0.49Mpa）Locking Force | 2514N | |
| (Static)Allowable moment | 58.6N·m | |
| (Static)Allowable torque | 80N·m | |

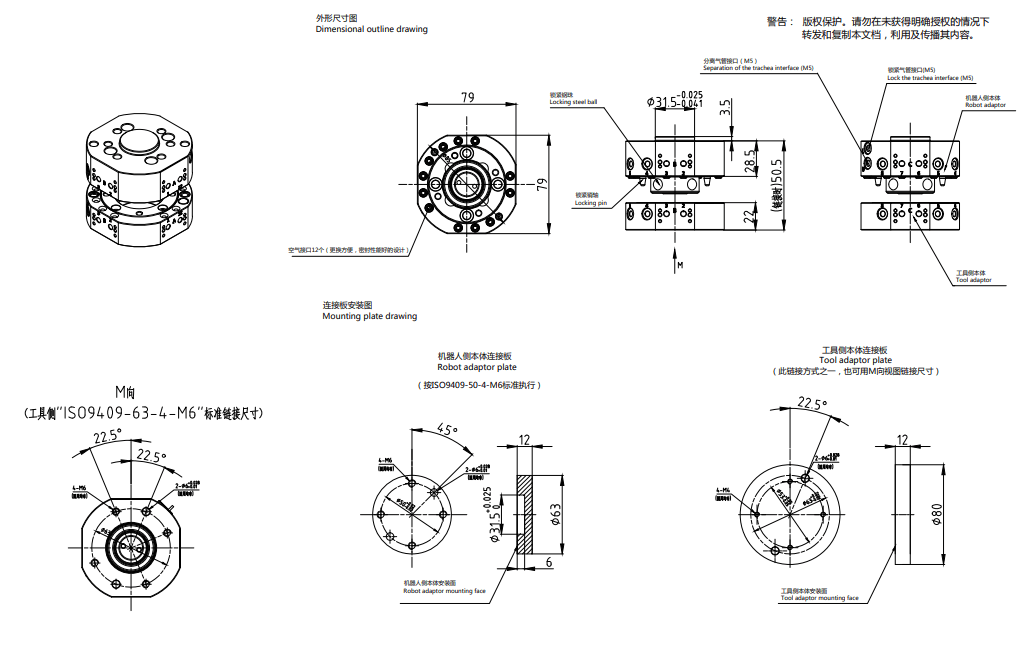

| Size and precision | Housing diameter | φ85mm |
| Combined profile | 50.5mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 0.53kg |
| Tool side | 0.30kg | |
| Air connector | Pneumatic port | 12 x M5 |
| Max pressure | 0.8Mpa | |
Electrical Module
| 8pins signal module | ||
|---|---|---|
| PO | F04010042 | F04010043 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-S08B | |
| Spec | 2A * 8Pins | |
| Weight | 0.087kg | 0.068kg |
| Details | ||
| 14pins signal module | ||
|---|---|---|
| PO | F04010058 | F04010059 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-S14A | |
| Spec | 2A * 14Pins | |
| Weight | 0.087kg | 0.068kg |
| Details | ||
High-Frequency Module
Servo Motor Module
Fluid&Air Module
| 4-way air supply module | ||
|---|---|---|
| PO | F03010015 | F03010016 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC04B | |
| Spec | 4*M5 | |
| Weight | 0.038kg | 0.034kg |
| Details | ||
Bus Module
