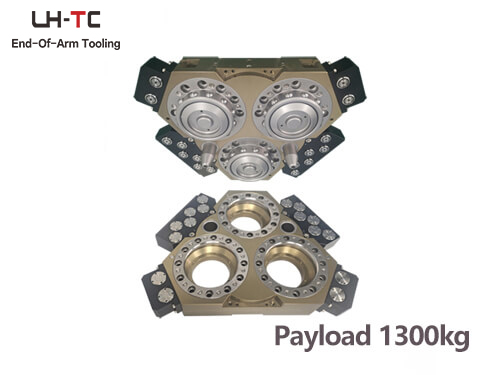

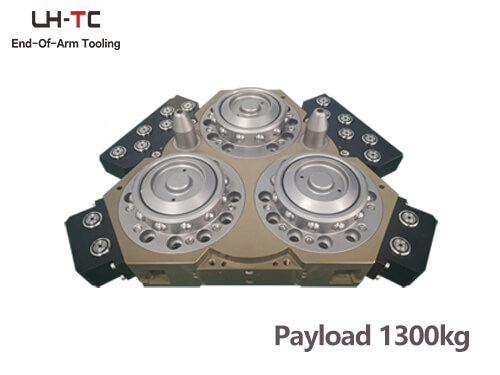

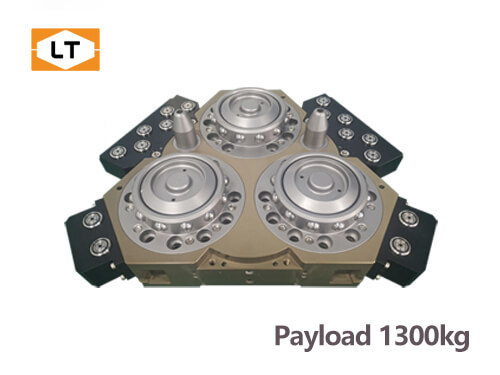

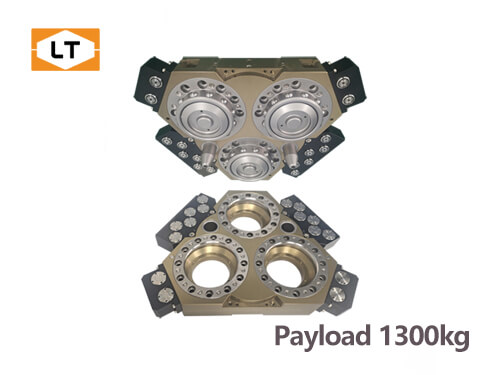

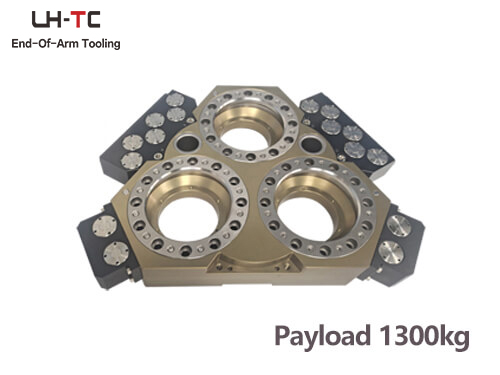

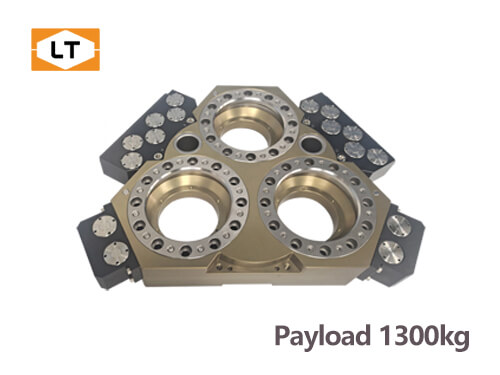

Model: LTC-1300A
Robot Side PO: 0151
Tool Side PO: 0153
Recommended payload ≤ 1300kg
Locking force: 106263N allowable Moment: 6830N·m (static) allowable torque: 6920N·m (static)
6 modules mounting interface
Suitable for handling, palletizing, welding, grinding, deburring and other applications
With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor
| Model | Master plate | LTC-1300AM |
| Tool plate | LTC-1300AT | |
| load | Payload capacity | 1300kg |
| (when pressure 0.49Mpa）Locking Force | 106263N | |
| (Static)Allowable moment | 6830N·m | |
| (Static)Allowable torque | 6920N·m | |

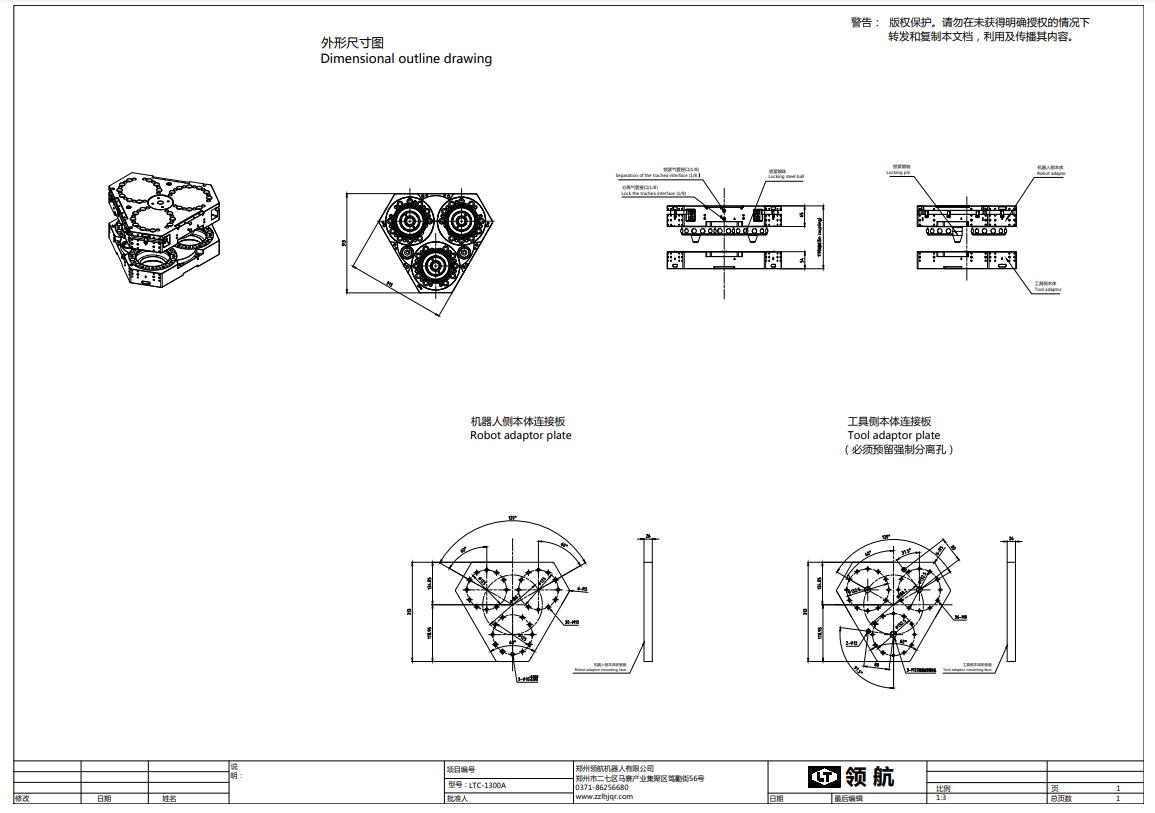

| Size and precision | Dimension | 313mm |
| Combined thickness | 119mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 19kg |
| Tool side | 9.5Kg | |

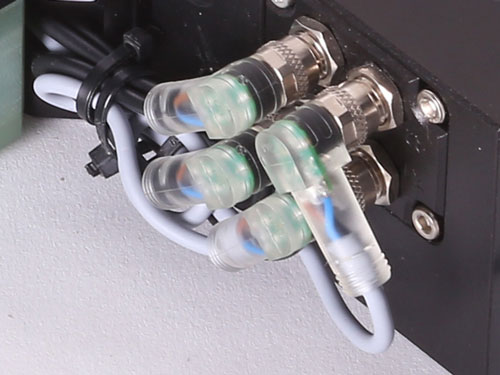

Sensor*
Electrical Module
| 15 Pins Signal Module | ||
|---|---|---|
| PO | 0713 | 0714 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C21-MS15-AF01 | |
| Spec | 5A*15pins | |
| Weight | 0.8 | 0.7 |
| Details | ||
| 20 Pins Signal Module | ||
|---|---|---|
| PO | 0740 | 0741 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C22-MS20-AF03 | |
| Spec | 5A*20pins | |
| Weight | 0.82 | 0.72 |
| Details | ||
| 22 Pins Signal Module | ||
|---|---|---|
| PO | 0717 | 0718 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C21-MS22-AF01 | |
| Spec | 5A*22pins | |
| Weight | 0.85 | 0.75 |
| Details | ||
| 32 Pins Signal Module | ||
|---|---|---|
| PO | 0750 | 0751 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C22-S32-AF03 | |
| Spec | 3A*32pins | |
| Weight | 0.8 | 0.7 |
| Details | ||
Servo Motor Module
| Yaskawa Servo Spot Welding Module | ||
|---|---|---|
| PO | 0877 | 0878 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C31-SM03C-MS09 | |
| Spec | 20A*4pins 3A*17pins 5A*9pins | |
| Weight | 0.85 | 0.75 |
| Details | ||
| Dual servo module - NACHI servo interface | ||
|---|---|---|
| PO | 0759 | 0760 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C41-SM07C-SM07C | |
| Spec | Dual servo module - NACHI servo interface | |
| Weight | 1.2 | 1.1 |
| Details | ||
