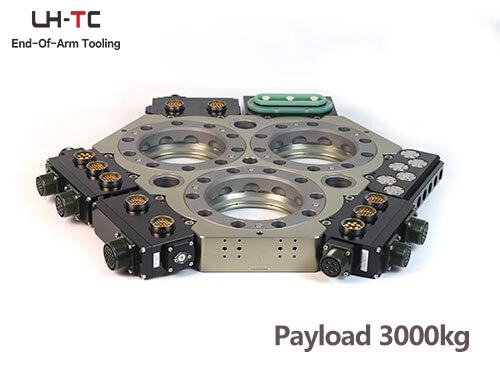

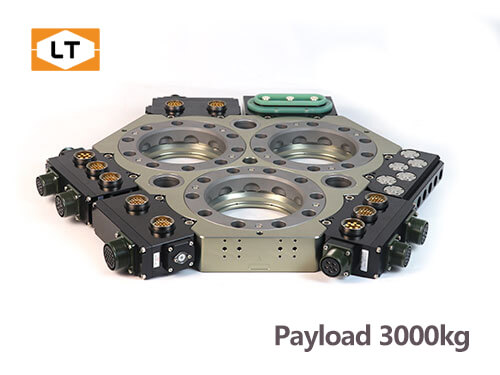

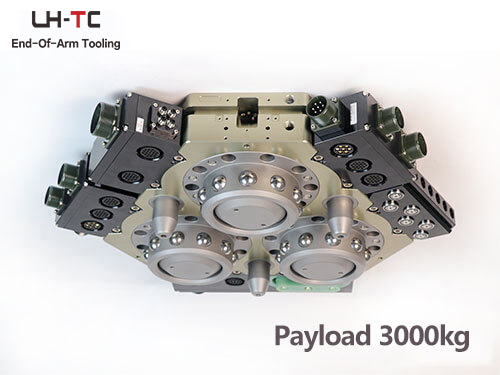

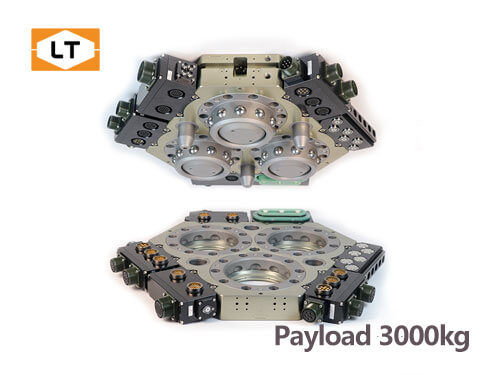

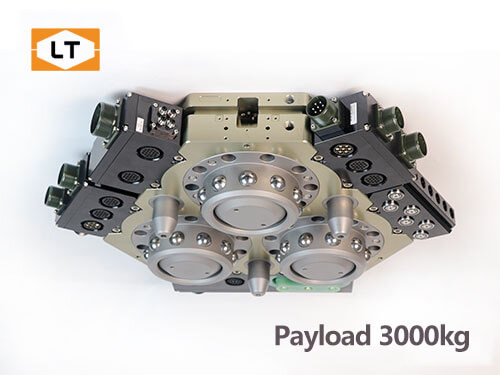

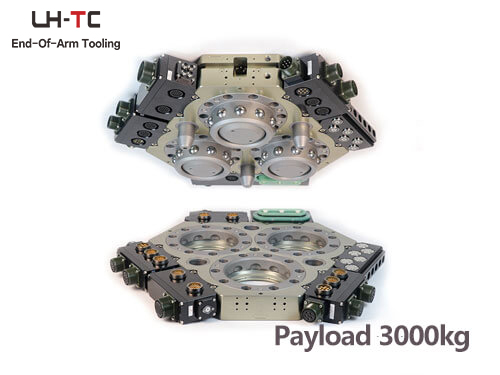

Model: LTC-3000A
Robot Side PO: 0167
Tool Side PO: 0267
Recommended payload ≤ 3000kg
Locking force: 130200N allowable Moment: 13600N·m (static) allowable torque:13000N·m (static)
4 modules mounting interface
Suitable for spot welding, assembly, handling and other applications
With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor
SO125, ISO160 standard flange interface

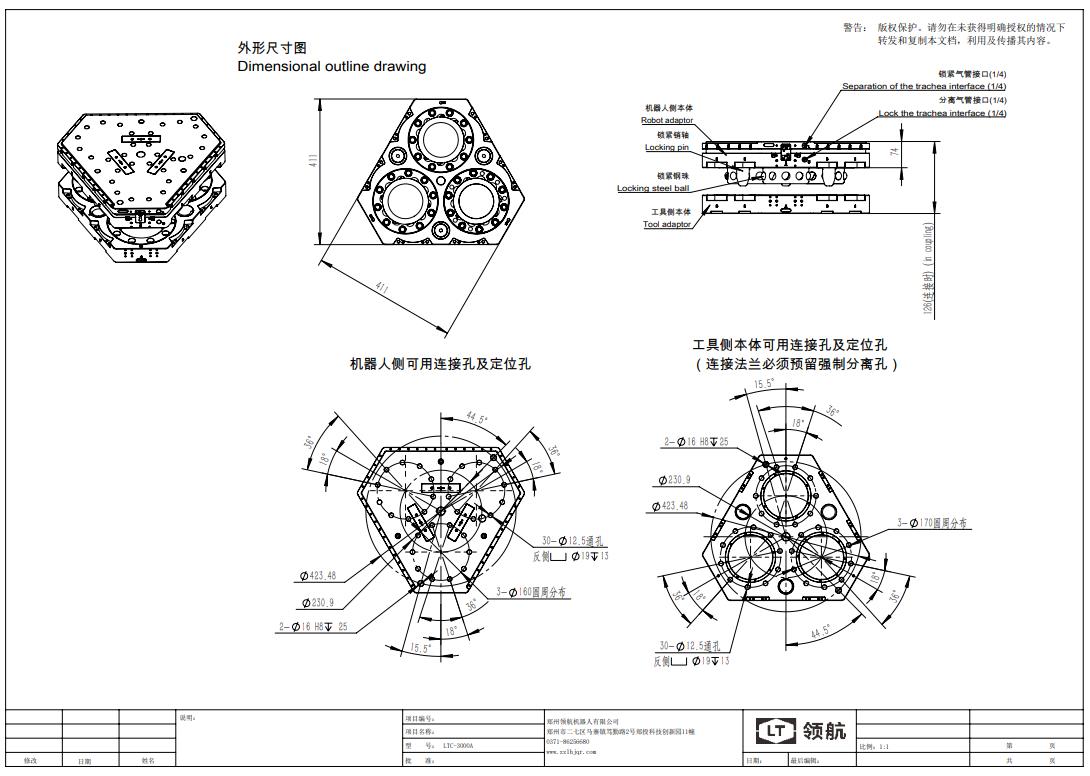

| Model | Master plate | LTC-3000AM |
| Tool plate | LTC-3000AT | |
| Load | Payload capacity | 3000kg |
| (when pressure 0.49Mpa）Locking Force | 130200N | |
| (Static)Allowable moment | 13600N·m | |
| (Static)Allowable torque | 13000N·m | |
| Size and precision | Housing diameter | 411mm |
| Combined profile | 126mm | |
| Position repeatability | ±0.03mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 39kg |
| Tool side | 19kg | |
Electrical Module
| 15 Pins Signal Module | ||
|---|---|---|
| PO | 0713 | 0714 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C21-MS15-AF01 | |
| Spec | 15 Pins Signal Module | |
| Weight | 0.8kg | 0.7kg |
| Details | ||
| 22 Pins Signal Module | ||
|---|---|---|
| PO | 0717 | 0718 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C21-MS22-AF01 | |
| Spec | 22 Pins Signal Module | |
| Weight | 0.85kg | 0.75kg |
| Details | ||
| 34 Pins Signal Module | ||
|---|---|---|
| PO | 0711 | 0712 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C21-S34-AF01 | |
| Spec | 34 Pins Signal Module | |
| Weight | 0.8kg | 0.7kg |
| Details | ||
| 3pins High Current Module | ||
|---|---|---|
| PO | 1009 | 1010 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E03K | |
| Spec | 150A*3pins | |
| Weight | 1.704kg | 1.602kg |
| Details | ||
Servo Motor Module
| Single Servo Module | ||
|---|---|---|
| PO | 0886 | 0887 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C31-SM03C | |
| Spec | Single Servo Module | |
| Weight | 1.01kg | 1.32kg |
| Details | ||
| Dual Servo Module | ||
|---|---|---|
| PO | 0752 | 0753 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C41-SM03C-SM03C | |
| Spec | Dual Servo Module | |
| Weight | 1.5kg | 1.5kg |
| Details | ||
| ABB Servo Spot Welding Module | ||
|---|---|---|
| PO | 1307 | 1308 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM01C-MS10 | |
| Spec | ABB Servo Spot Welding Module | |
| Weight | 1.11kg | 1.34kg |
| Details | ||
| Kuka Spot Welding Servo Module | ||
|---|---|---|
| PO | 1303 | 1304 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-C33-SM02C-MS14 | |
| Spec | Kuka Spot Welding Servo Module | |
| Weight | 1.01kg | 1.24kg |
| Details | ||
Fluid&Air Module
| 11-way Air Supply Module | ||
|---|---|---|
| PO | 1223 | 1222 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC11A | |
| Spec | 11-way Air Supply Module | |
| Weight | 0.8kg | 0.8kg |
| Details | ||
| 6-way Air Supply Module (Self Sealing) | ||
|---|---|---|
| PO | 1226 | 1227 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GS06A | |
| Spec | 6-way Air Supply Module (Self Sealing) | |
| Weight | 0.95kg | 0.95kg |
| Details | ||
| 4-way Fluid & Air module | ||
|---|---|---|
| PO | 0430 | 0434 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-L04A-04 | |
| Spec | 4-way Fluid & Air module | |
