Home > Grippers > LT-PG3-160 Series

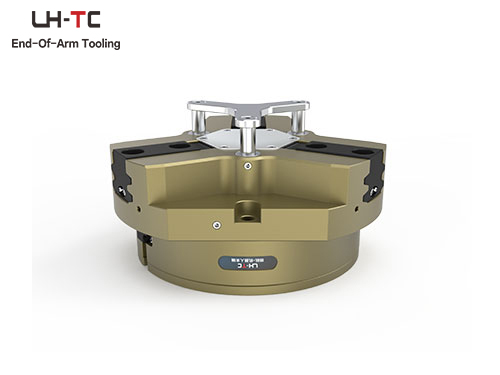

LT-PG3-160 Series

Advantages – Your Benefits

Stroke per jaw: 16mm/8mm Recommended workpiece weight: 27-101kg

Universal three finger manipulator

Self-lubrication design Ensure reliable clamping

Lubrication groove design Extends maintenance intervals

Standard solutions for multiple application fields

Chat Online Inquiry Now

Optional Extension Model

LT-PG3-160A

LT-PG3-160A

Description: Basic

Stroke per jaw (mm) 16
Closing force (N) 5400
Min. spring force (N) /
Opening force (N) 5770
Recommended workpiece weight (kg) 27
Weight (kg) 5.1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.5/0.5
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 500
Max finger length (mm) 220

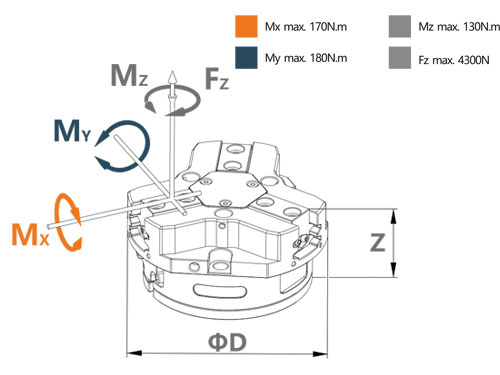

Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

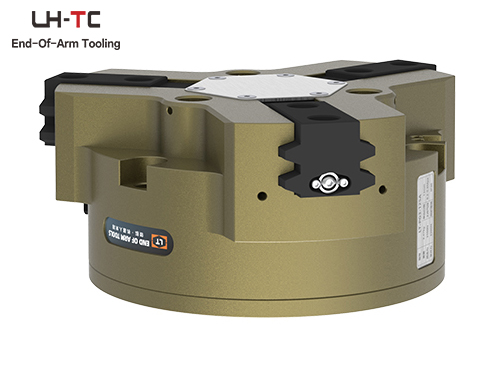

LT-PG3-160B

LT-PG3-160B

Description: Basic

Stroke per jaw (mm) 8
Closing force (N) 10160
Min. spring force (N) /
Opening force (N) 10860
Recommended workpiece weight (kg) 50.8
Weight (kg) 5.1
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP40
Opening/closing time (s) 0.5/0.5
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 500
Max finger length (mm) 210
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

LT-PG3-160A-CFM

LT-PG3-160A-CFM

Description: Closing force hold

Stroke per jaw (mm) 16
Closing force (N) 7370
Min. spring force (N) 1970
Opening force (N) /
Recommended workpiece weight (kg) 27
Weight (kg) 5.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.8/0.4
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 870
Max finger length (mm) 210
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

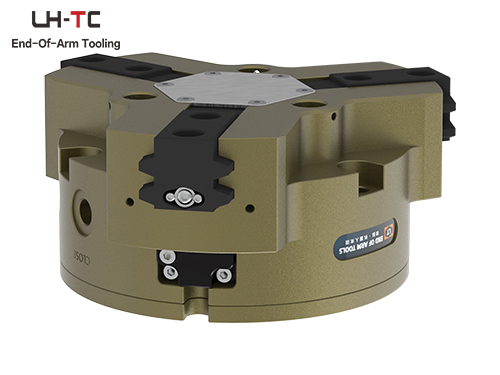

LT-PG3-160B-CFM

LT-PG3-160B-CFM

Description: Closing force hold

Stroke per jaw (mm) 8
Closing force (N) 14060
Min. spring force (N) 3900
Opening force (N) /
Recommended workpiece weight (kg) 50.8
Weight (kg) 5.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.8/0.4
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 870
Max finger length (mm) 200
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

LT-PG3-160A-OFM

LT-PG3-160A-OFM

Description: Opening force hold

Stroke per jaw (mm) 16
Closing force (N) /
Min. spring force (N) 1970
Opening force (N) 7740
Recommended workpiece weight (kg) 27
Weight (kg) 5.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.4/0.8
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 870
Max finger length (mm) 210
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

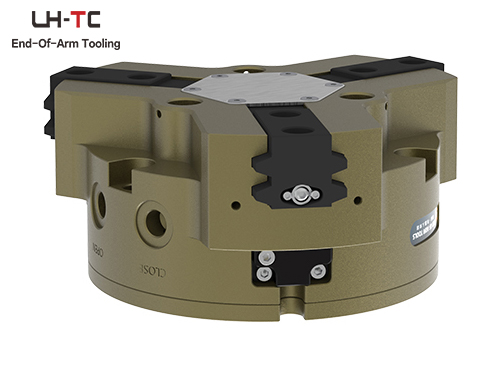

LT-PG3-160B-OFM

LT-PG3-160B-OFM

Description: Opening force hold

Stroke per jaw (mm) 8
Closing force (N) /
Min. spring force (N) 3900
Opening force (N) 14760
Recommended workpiece weight (kg) 50.8
Weight (kg) 5.9
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.65
IP Grade (IP) IP40
Opening/closing time (s) 0.4/0.8
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 870
Max finger length (mm) 200
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

LT-PG3-160A-DP

LT-PG3-160A-DP

Description: Dustproof

Stroke per jaw (mm) 16
Closing force (N) 5400
Min. spring force (N) /
Opening force (N) 5770
Recommended workpiece weight (kg) 27
Weight (kg) 5.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.5/0.5
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 500
Max finger length (mm) 220
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information

LT-PG3-160B-DP

LT-PG3-160B-DP

Description: Dustproof

Stroke per jaw (mm) 8
Closing force (N) 10160
Min. spring force (N) /
Opening force (N) 10860
Recommended workpiece weight (kg) 50.8
Weight (kg) 5.2
Min air pressure (Mpa) 0.4
Rated air pressure (Mpa) 0.6
Max air pressure (Mpa) 0.8
IP Grade (IP) IP64
Opening/closing time (s) 0.5/0.5
Repetition accuracy (mm) 0.02
Air consumption (round-trip) 500
Max finger length (mm) 210
Moment Mx(N·m) 170
Max finger weight (kg) 3.5
Moment My(N·m) 180
Max. force axial Fz(N) 4300
Moment Mz(N·m) 130

More product information Less product information
