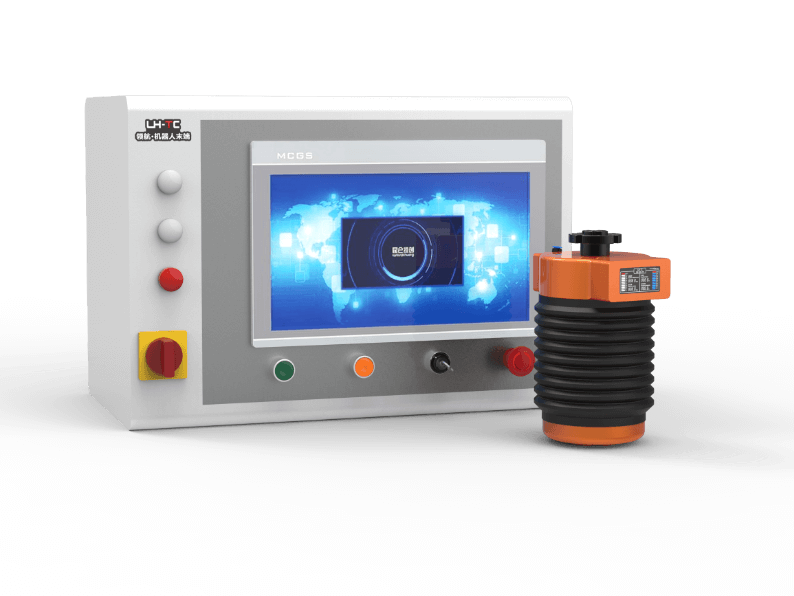

Linghang Axial Active Floating Constant Force Grinding Tools

Linghang axial active floating constant force grinding tool, Integrate perception, control, execution, and feedback systems.

Highly open, no need for secondary development, Embedded connected robot system, plug and play.

It has absolute advantages such as high adaptability and high precision.

Advantages of axial active floating constant force grinding tools

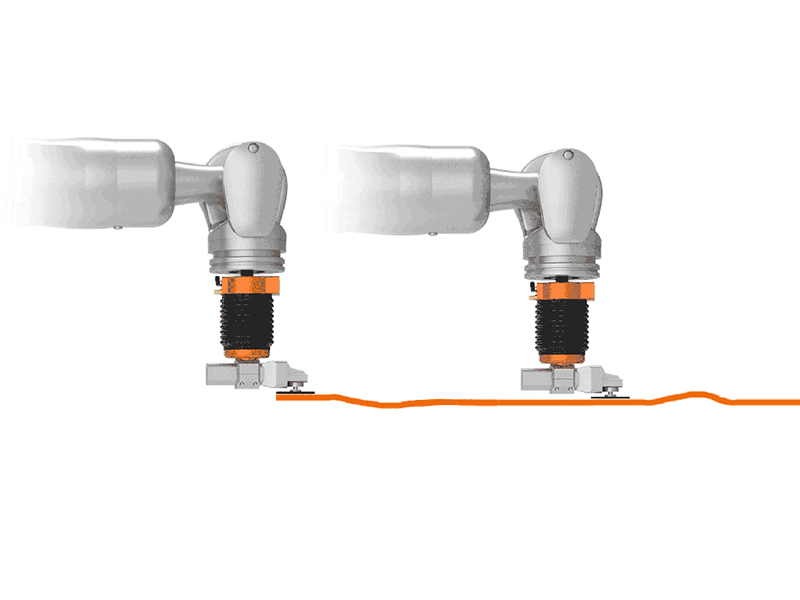

1. Adaptive flexible contact grinding of complex concave and convex surfaces. The grinding tool and the workpiece are always in close contact during operation to ensure the consistency of the grinding effect.

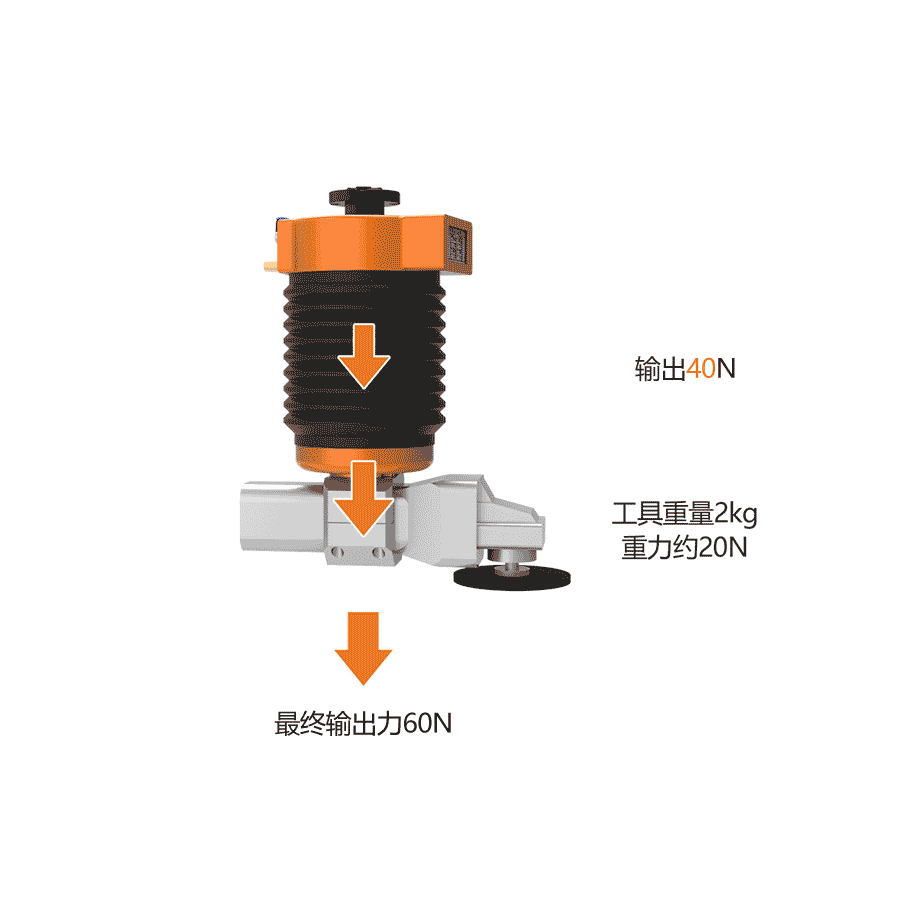

2. The constant force actuator automatically identifies the posture and performs output force compensation.
3. Active constant force compensation accuracy in all postures is within +-0.5N, achieving precise force control.

4. Contact force data to facilitate process debugging. Visualization work
5. Realize plug-and-play connection with robots on the market, solve the problems of robot ecological fragmentation and cross-terminal docking, and make integration easier and smarter.

Main application scenarios

Can be used for the following processes

→ Polishing

→ Polishing

→Paint removal

→ Cleaning

→Remove weld slag

→ Quantitative cutting

→ Brushed, mirror finish

Processable materials

→Metals such as steel, aluminum, iron, etc.

→Plastics

→Ceramics

→Wood

Industry Cases

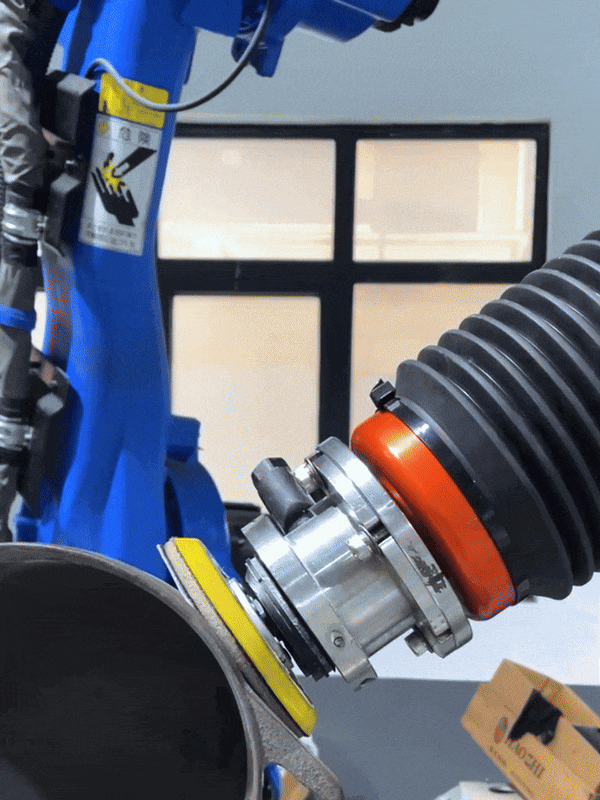

Case 1

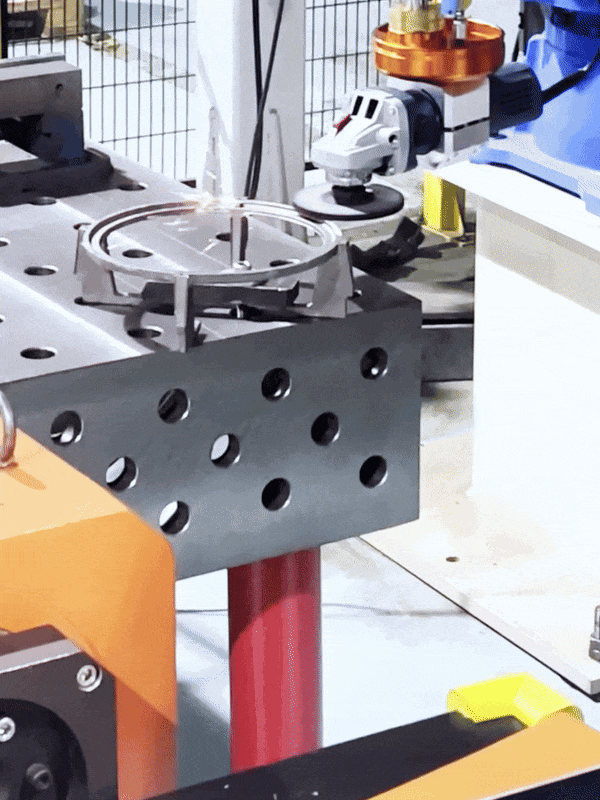

This project involves stamping and laser cutting of special-shaped workpieces. The burrs on the edges of laser-cut rough parts are within 2mm, and the process requires a smooth edge. The use of the pilot axial floating tool can achieve the effect of grinding the entire part at one time, greatly improving the grinding efficiency.

Case 2

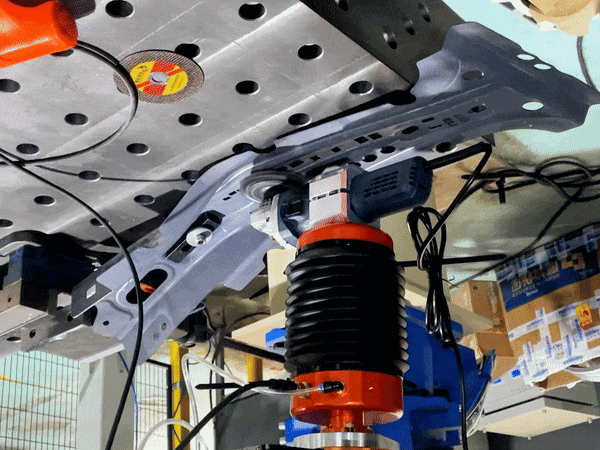

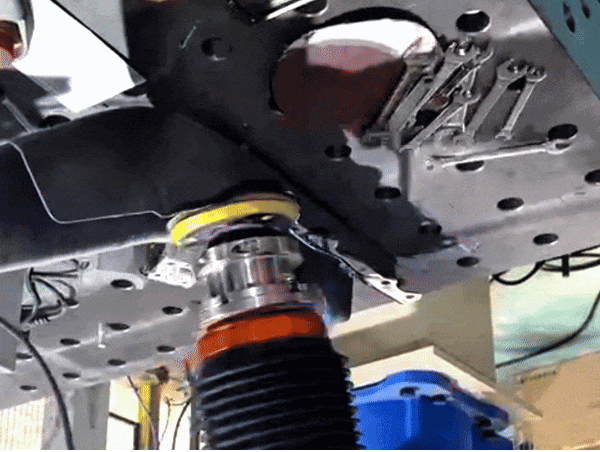

This project is for grinding the welding points of automobile bridge frames. The pilot axial floating and straight grinder with constant force effectively solved the customer’s problem.

Case 3

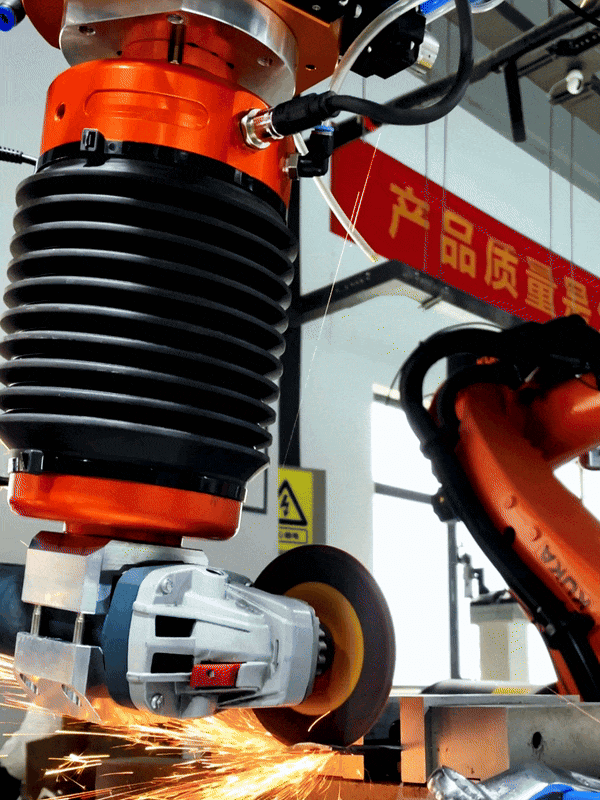

This project involves grinding stainless steel castings and polishing the surface of the finished workpiece, including the burrs on the gate. The constant force of the pilot axial floating angle grinder effectively solved the customer’s problem.

Case 4

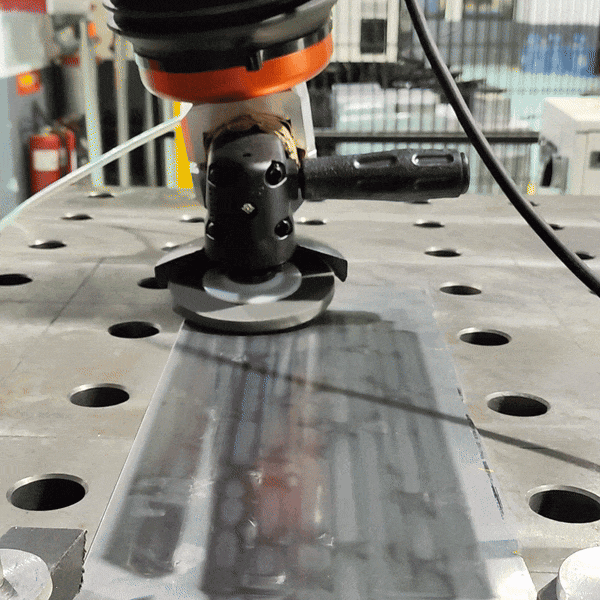

This display shows the surface grinding and polishing of metal parts. By replacing different sandpapers, nylon and cloth wheels, a large area can be polished uniformly with the three processes to a mirror effect.

Case 5

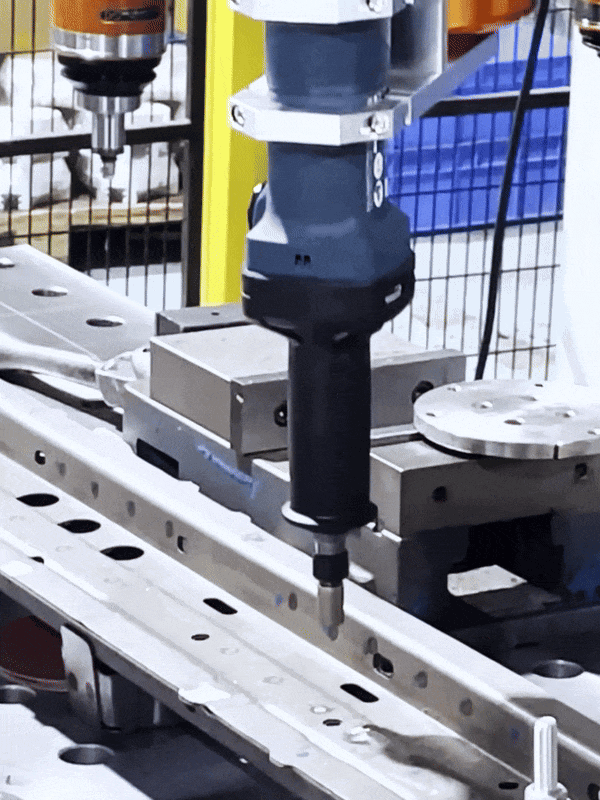

This demonstration shows the overall removal of the workpiece. Different forces can be applied according to the usage scenario to perform flexible quantitative cutting on workpieces of different materials.
