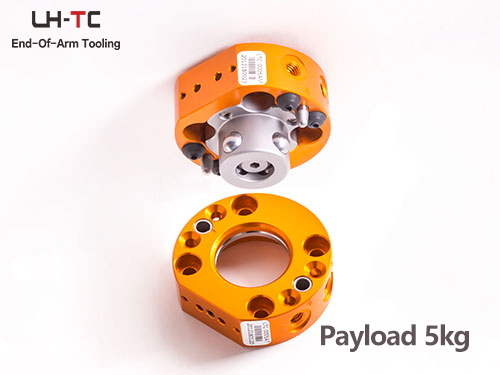

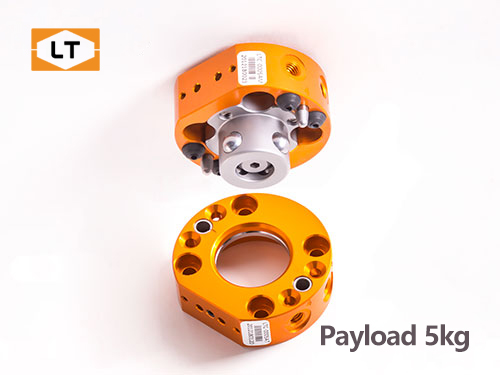

LTC-0005A Tool Changer

Model: LTC-0005A

Robot Side PO:0120 Tool Side PO:0220

Recommended payload ≤ 5kg

Locking force: 770N Allowable moment: 13.2N·m (static) Allowable torque: 18N·m (static)

4*M5 Pneumatic port connection and 1 module mounting interface

Suitable for Assembly, handling, etc

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

  • Introduction

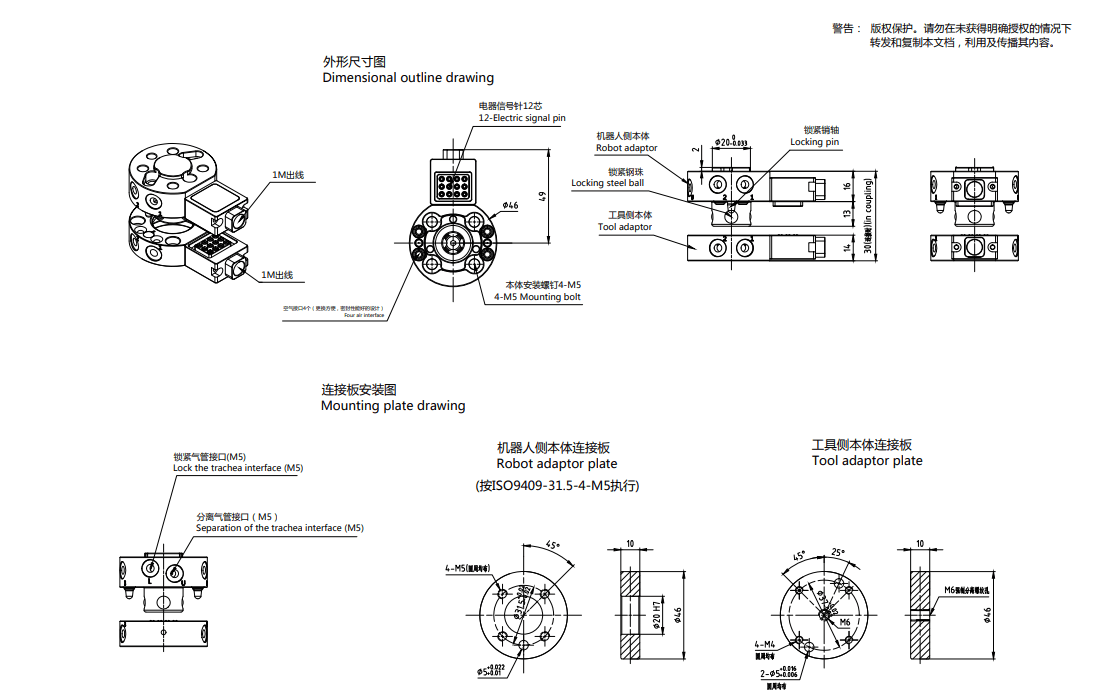

  • CAD Drawing
  • 3D Model
  • Optional Modules

Model

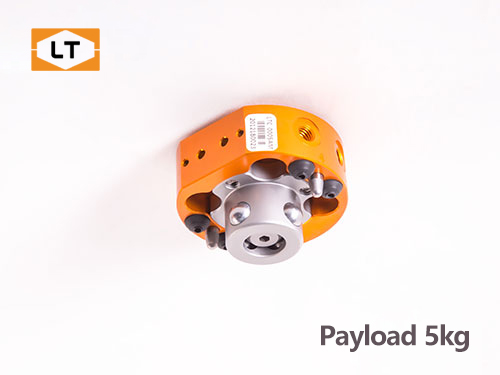

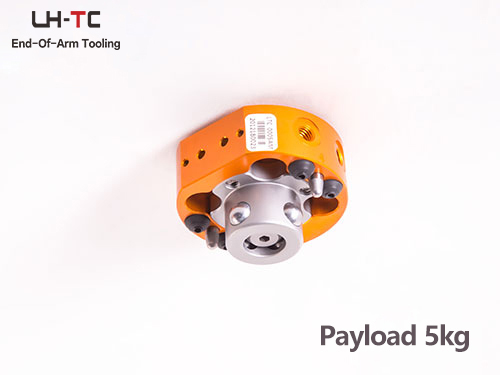

Master  plate LTC-0005AM

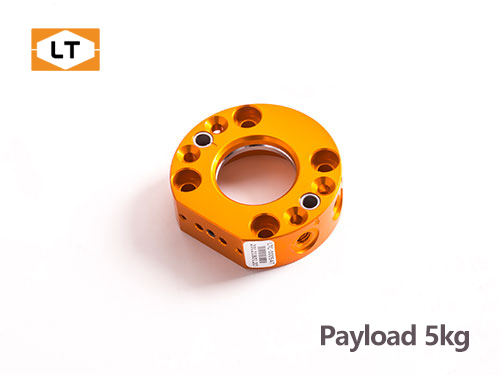

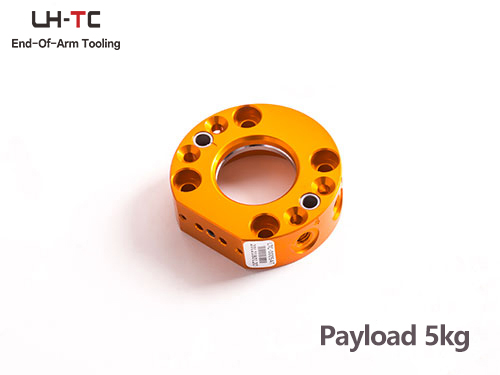

Tool plate LTC-0005AT
load Payload capacity 5kg
(when pressure 0.49Mpa)Allowable moment 770N
(Static)Allowable moment 13.2N·m
(Static)Allowable torque 18N·m
Size and precision Housing diameter φ46mm
Combined profile 30mm
Position repeatability ±0.015mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel   ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 95%
Weight Master side 0.11kg
Tool side 0.04kg
Air connector Pneumatic port 4 x M5
Max pressure 0.8Mpa
