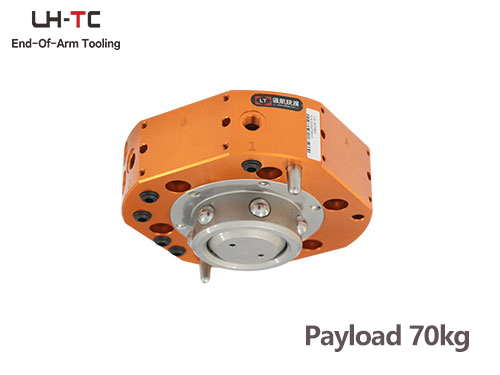

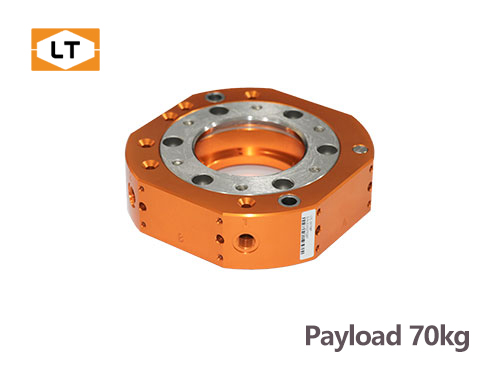

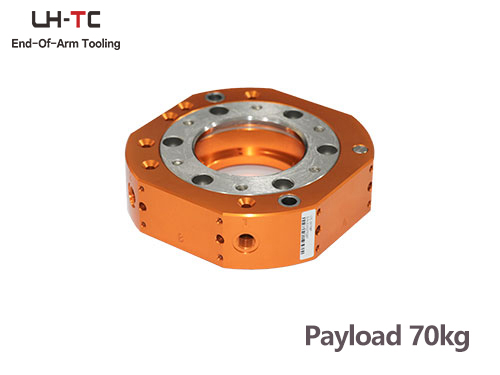

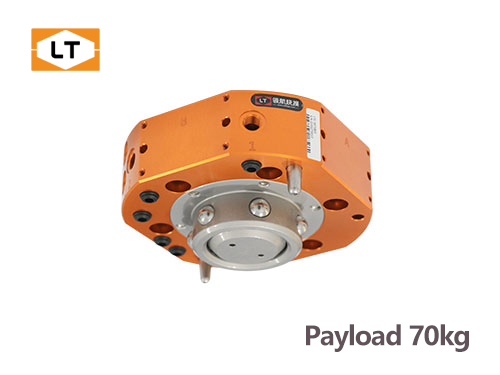

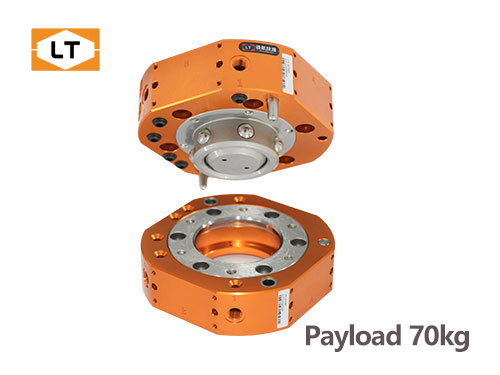

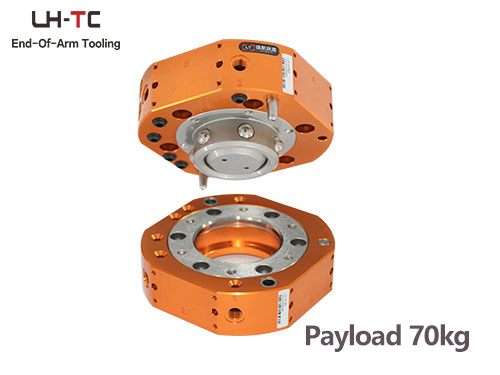

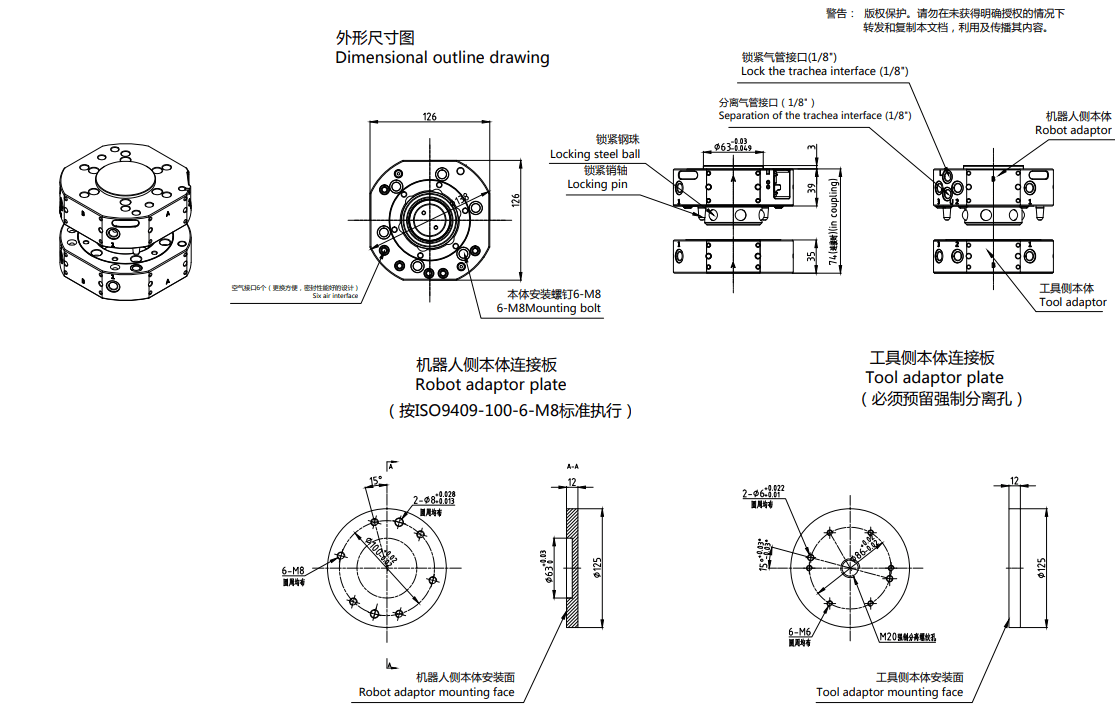

Model: LTC-0070B
Robot Side PO: 0149 Tool Side PO: 0249
Recommended payload ≤ 70kg
Locking force: 9973N allowable Moment: 328.5N·m (static) allowable torque: 451N·m(static)
6*PT1/8 pneumatic port connection and 4 modules mounting interface
Suitable for handling, palletizing, welding, grinding, deburring and other applications
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
| Model | Master plate | LTC-0070BM |
| Tool plate | LTC-0070BT | |
| load | Payload capacity | 70kg |
| （when pressure 0.49Mpa）Locking Force | 9973N | |
| （Static） Allowable moment | 328.5N·m | |
| （Static） Allowable torque | 451N·m | |
| Size and precision | Housing diameter | φ138mm |
| Combined profile | 74mm | |
| Position repeatability | ±0.02mm | |
| Air pressure for working | 0.4~0.7Mpa | |
| Locking mechanism | Locking steel ball | |
| Texture of material | Main body material | Aluminum alloy |
| Locking mechanism | Alloy steel | |
| Environmental Science | Temperature | 0-60℃ |
| Humidity | 0-95% | |
| Weight | Master side | 1.83kg |
| Tool side | 1.14kg | |
| Air connector | Pneumatic port | 6 x PT1/8 |
| Max pressure | 0.8Mpa | |
Sensor*
Electrical Module
| 7pins signal module | ||
|---|---|---|
| PO | 0357 | 0358 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E16-MS07A-AF01 | |
| Spec | 5A*7pins + 3A*1pins | |
| Weight | 0.294kg | 0.246kg |
| Details | ||
| 15pins signal module | ||
|---|---|---|
| PO | 0359 | 0360 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E16-S15A-AF01 | |
| Spec | 3A * 15Pins | |
| Weight | 0.294kg | 0.245kg |
| Details | ||
| 22pins signal module | ||
|---|---|---|
| PO | 0589 | 0590 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E16-S22-AF01 | |
| Spec | 3A * 22Pins | |
| Weight | 0.352kg | 0.266kg |
| Details | ||
| 19pins signal module (Supplementary) | ||
|---|---|---|
| PO | 0361 | 0362 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E12-S19A | |
| Spec | 3A * 19Pins | |
| Weight | 0.253kg | 0.234kg |
| Details | ||
High-Frequency Module
Servo Motor Module
Gas and Liquid Module
| 2-way air supply module | ||
|---|---|---|
| PO | 0477 | 0478 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC02A | |
| Spec | 2*PT3/8 Open air circuit | |
| Weight | 0.118kg | 0.109kg |
| Details | ||
| 6-way air supply module | ||
|---|---|---|
| PO | 0481 | 0482 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC06A | |
| Spec | 6*PT1/8 Open air circuit | |
| Weight | 0.124kg | 0.114kg |
| Details | ||
| 10-way air supply module | ||
|---|---|---|
| PO | 0625 | 0626 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GC10A | |
| Spec | 10*PT1/8 Open air circuit | |
| Weight | 0.211kg | 0.192kg |
| Details | ||
| 1-way self-sealing air supply module | ||
|---|---|---|
| PO | 1212 | 1213 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GS01A | |
| Spec | 1*PT3/8 self-sealing air circuit | |
| Weight | 0.228kg | 0.215kg |
| Details | ||
| 2-way self-sealing air supply module | ||
|---|---|---|
| PO | 1201 | 1205 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-GS02A | |
| Spec | 2*PT3/8 self-sealing air circuit | |
| Weight | 0.228kg | 0.20kg |
| Details | ||
Bus Module
| Ethernet bus module | ||
|---|---|---|
| PO | 1113 | 1114 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-S05-BI01-AF01 | |
| Spec | Ethernet bus module | |
| Weight | 0.281kg | 0.218kg |
| Details | ||
| Ethernet bus module | ||
|---|---|---|
| PO | 0637 | 0638 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-S07-BI01-AF01 | |
| Spec | Ethernet bus via module | |
| Weight | 0.333kg | 0.297kg |
| Details | ||
| Ethernet bus module | ||
|---|---|---|
| PO | 0635 | 0636 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-BI01-AF01 | |
| Spec | Ethernet bus module | |
| Weight | 0.312kg | 0.279kg |
| Details | ||
| Devicenet bus module | ||
|---|---|---|
| PO | 0641 | 0642 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-BI02-AF01 | |
| Spec | Devicenet bus module | |
| Weight | 0.312kg | 0.279kg |
| Details | ||
| Devicenet bus module | ||
|---|---|---|
| PO | 0639 | 0640 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-S07-BI02-AF01 | |
| Spec | Devicenet bus module | |
| Weight | 0.333kg | 0.297kg |
| Details | ||
| PROFIBUS bus module | ||
|---|---|---|
| PO | 0647 | 0648 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-BI04-AF01 | |
| Spec | PROFIBUS bus module | |
| Weight | 0.312kg | 0.279kg |
| Details | ||
| PROFIBUS bus module | ||
|---|---|---|
| PO | 0649 | 0650 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-S07-BI04-AF01 | |
| Spec | PROFIBUS bus module | |
| Weight | 0.333kg | 0.297kg |
| Details | ||
| CC-Link bus module | ||
|---|---|---|
| PO | 0643 | 0644 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-BI03-AF01 | |
| Spec | CC-Link bus module | |
| Weight | 0.312kg | 0.279kg |
| Details | ||
| CC-Link bus module | ||
|---|---|---|
| PO | 0645 | 0646 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-S07-BI03-AF01 | |
| Spec | CC-Link bus module | |
| Weight | 0.333kg | 0.297kg |
| Details | ||
| Gigabit Ethernet bus module | ||
|---|---|---|
| PO | 0651 | 0652 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E11-BI05-AF01 | |
| Spec | Gigabit Ethernet bus module | |
| Weight | 0.312kg | 0.279kg |
| Details | ||
| Ethernet bus module (Supplementary) | ||
|---|---|---|
| PO | 0333 | 0334 |
| Photo |
Robot Side
|
Tool Side
|
| Model | LMO-E12-BI01 | |
| Spec | Ethernet bus module | |
| Weight | 0.207kg | 0.184kg |
| Details | ||
