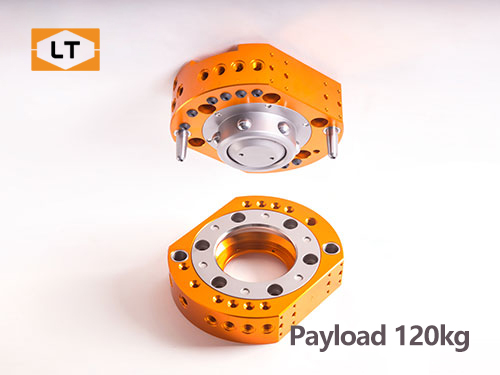

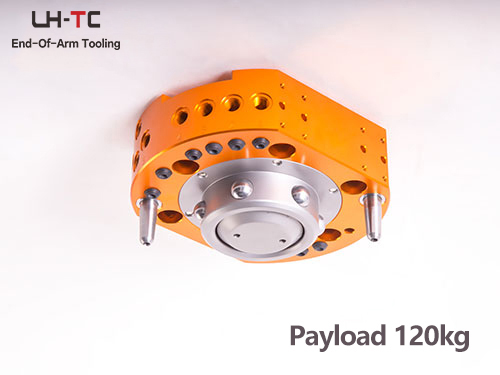

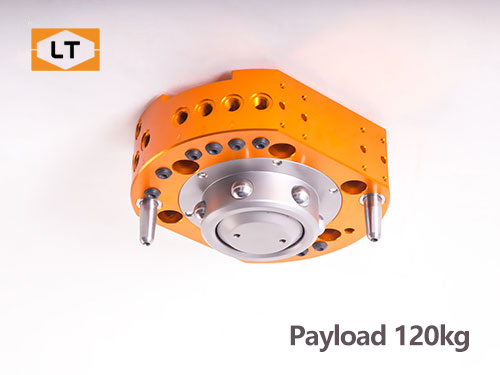

LTC-0120C Tool Changer

Model: LTC-0120C

Robot Side PO: F01080002 Tool Side PO: F01080009

Recommended payload ≤ 120kg

Locking force: Locking force: 15407N allowable moment: 842N·m (static) allowable torque: 1200N·m (static)

10*PT1/8 pneumatic port and 2 module mounting interfaces

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

Chat Online Inquiry Now
  • Introduction

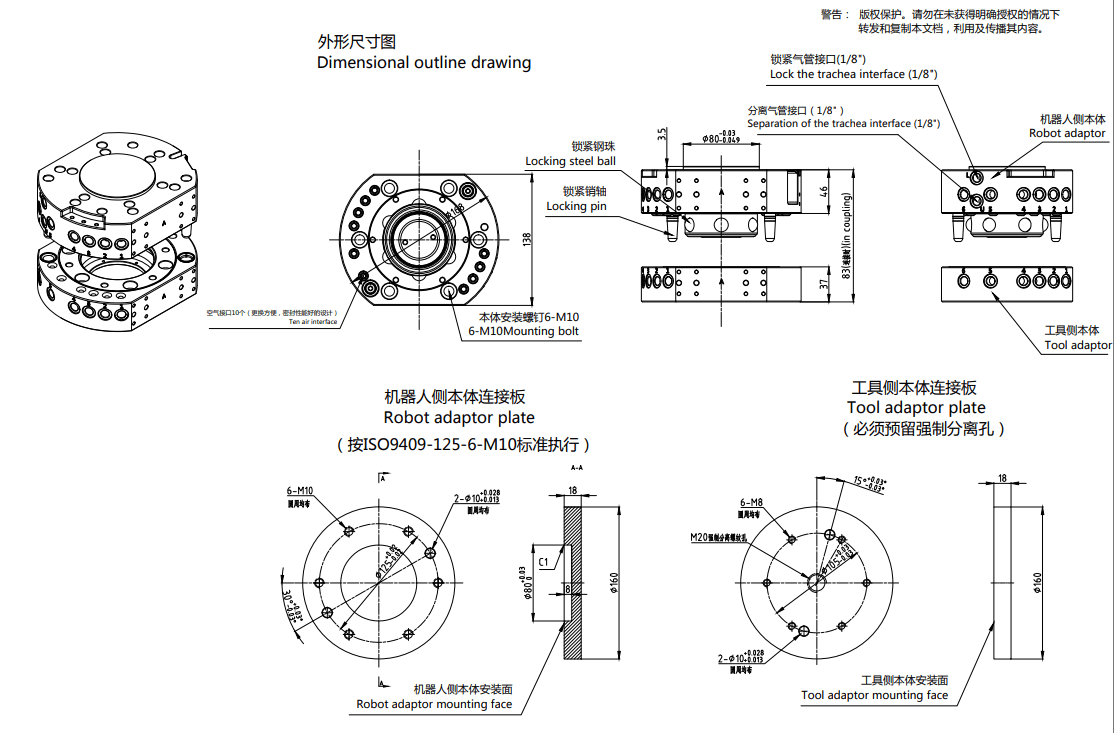

  • CAD Drawing
  • 3D Model
  • Optional Modules
Model Master  plate LTC-0120CM

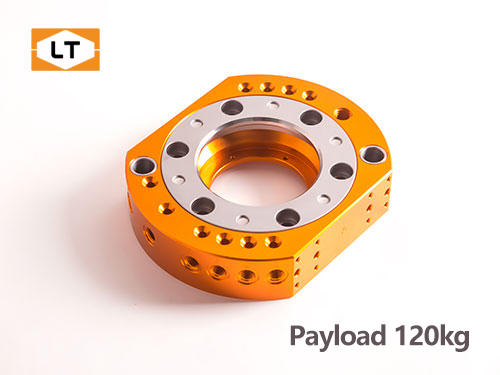

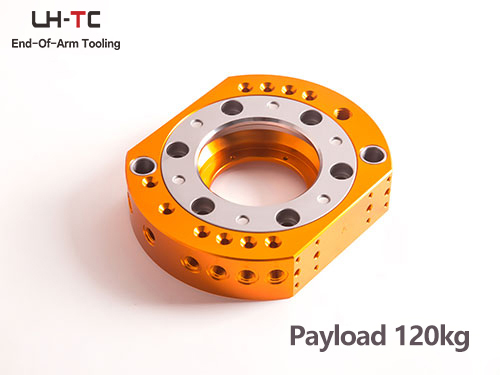

Tool plate LTC-0120CT
load Payload capacity 120kg
（when pressure 0.49Mpa）Locking Force 15407N
（Static） Allowable moment 842N·m
（Static） Allowable torque 1200N·m
Size and precision Housing diameter φ168mm
Combined profile 83mm
Position repeatability ±0.02mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 0-95%
Weight Master side 2.28kg
Tool side 1.58kg
Air connector Pneumatic port 10 x PT1/8
Max pressure 0.8Mpa
SensorSensor
LMO-P3-01
PO F06020015
LMO-P3-01
Model LMO-P3-01
Details
LMO-N3-01
PO F06010014
LMO-N3-01
Model LMO-N3-01
Details

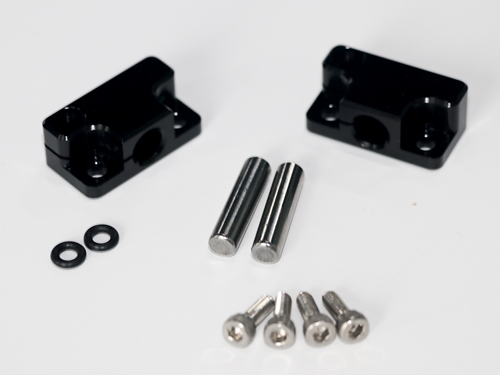

Without Sensor Assembly LMO-XZ-01
PO F06030006
Without Sensor Assembly LMO-XZ-01
Model LMO-XZ-01
Details
Electrical ModuleElectrical Module
7pins signal module
PO F04020017 F04020018
7pins signal module
Robot Side
7pins signal module
Tool Side
Model LMO-E16-MS07A-AF01
Spec 3A*7pin
Weight 0.294kg 0.246kg
Details
15pins signal module
PO F04050001 F04050002
15pins signal module
Robot Side
15pins signal module
Tool Side
Model LMO-F21-MS15A-AF01
Spec 3A * 15Pins
Weight 0.483kg 0.411kg
Details
22pins signal module
PO F04050006 F04050007
22pins signal module
Robot Side
22pins signal module
Tool Side
Model LMO-F21-MS22-AF01
Spec 5A * 22Pins
Weight 0.562kg 0.440kg
Details
34pins signal module
PO F04050028 F04050029
34pins signal module
Robot Side
34pins signal module
Tool Side
Model LMO-F21-S34A-AF01
Spec 3A*34Pins
Weight 0.572kg 0.485kg
Details
48pins signal module
PO F04050010 F04050011
48pins signal module
Robot Side
48pins signal module
Tool Side
Model LMO-F21-S48-AF01
Spec 3A*48Pins
Weight 0.657kg 0.530kg
Details
19pins signal module (Supplementary)
PO F04020021 F04020022
19pins signal module (Supplementary)
Robot Side
19pins signal module (Supplementary)
Tool Side
Model LMO-E12-S19A
Spec 3A * 19Pins
Weight 0.253kg 0.234kg
Details
26pins signal module (Supplementary)
PO F04020052 F04020053
26pins signal module (Supplementary)
Robot Side
26pins signal module (Supplementary)
Tool Side
Model LMO-E12-S26
Spec 3A * 26Pins
Weight 0.23kg 0.21kg
Details
38pins signal module (Supplementary)
PO F04050043 F04050044
38pins signal module (Supplementary)
Robot Side
38pins signal module (Supplementary)
Tool Side
Model LMO-F22-S38A
Spec 3A*38Pins
Weight 0.530kg 0.475kg
Details
52pins signal module (Supplementary)
PO F04050036 F04050037
52pins signal module (Supplementary)
Robot Side
52pins signal module (Supplementary)
Tool Side
Model LMO-F22-S52
Spec 3A*52Pins
Weight 0.633kg 0.522kg
Details
Power supply + signal module
PO F04050012 F04050013
Power supply + signal module
Robot Side
Power supply + signal module
Tool Side
Model LMO-F21-E06A-S15-AF01
Spec 20A*6Pin for electrical power supply, 3A*15Pin for signal
Weight 0.582kg 0.517kg
Details
Power supply + signal module
PO F04050014 F04050015
Power supply + signal module
Robot Side
Power supply + signal module
Tool Side
Model LMO-F21-E06A-S22-AF01
Spec 20A*6pin for electrical power supply, 3A*22Pin for signal
Weight 0.645kg 0.536kg
Details
6pins electrical power supply module
PO F04020027 F04020028
6pins electrical power supply module
Robot Side
6pins electrical power supply module
Tool Side
Model LMO-E12-E06A
Spec 20A * 6Pins
Weight 0.284kg 0.267kg
Details
12pins electrical power supply module
PO F04050032 F04050033
12pins electrical power supply module
Robot Side
12pins electrical power supply module
Tool Side
Model LMO-F22-E06A-E06A
Spec 20A*12Pins
Weight 0.553kg 0.537kg
Details
High-Frequency ModuleHigh-Frequency Module
Double channel Ultrasonic Module
PO F04020079 F04020080
Double channel Ultrasonic Module
Robot Side
Double channel Ultrasonic Module
Tool Side
Model LMO-E13-U02A-U02A
Spec 5A 1.4KV
Weight 0.208kg 0.178kg
Details
Servo Motor ModuleServo Motor Module
Servo module
PO F04050030 F04050031
Servo module
Robot Side
Servo module
Tool Side
Model LMO-F22-SM10C
Spec 20A*4Pin for Power, 2A*2Pin for Brake, 2A*8Pin for Encoder
Weight 0.496kg 0.459kg
Details
Fluid&Air module Fluid&Air Module
2-way air supply module
PO F03010001 F03010002
2-way air supply module
Robot Side
2-way air supply module
Tool Side
Model LMO-GC02A
Spec 2*PT3/8 Open air circuit
Weight 0.118kg 0.109kg
Details
4-way air supply module
PO F03010003 F03010004
4-way air supply module
Robot Side
4-way air supply module
Tool Side
Model LMO-GC04A
Spec 4*PT3/8 Open air circuit
Weight 0.285kg 0.242kg
Details
6-way air supply module
PO F03010005 F03010006
6-way air supply module
Robot Side
6-way air supply module
Tool Side
Model LMO-GC06A
Spec 6*PT1/8 Open air circuit
Weight 0.124kg 0.114kg
Details
10-way air supply module
PO F03010011 F03010012
10-way air supply module
Robot Side
10-way air supply module
Tool Side
Model LMO-GC10A
Spec 10*PT1/8 Open air circuit
Weight 0.211kg 0.192kg
Details
1-way self-sealing air supply module
PO F03020005 F03020006
1-way self-sealing air supply module
Robot Side
1-way self-sealing air supply module
Tool Side
Model LMO-GS01A
Spec 1*PT3/8 self-sealing air circuit
Weight 0.228kg 0.215kg
Details
2-way self-sealing air supply module
PO F03020009 F03020010
2-way self-sealing air supply module
Robot Side
2-way self-sealing air supply module
Tool Side
Model LMO-GS02B
Spec 2*PT3/8 self-sealing air circuit
Weight 0.21kg 0.21kg
Details
3-way self-sealing air supply module
PO F03020011 F03020012
3-way self-sealing air supply module
Robot Side
3-way self-sealing air supply module
Tool Side
Model LMO-GS03A
Spec 3*PT3/8 self-sealing air circuit
Weight 0.25kg 0.25kg
Details
4-way self-sealing air supply module
PO F03020013 F03020014
4-way self-sealing air supply module
Robot Side
4-way self-sealing air supply module
Tool Side
Model LMO-GS04A
Spec 4*PT3/8 self-sealing air circuit
Weight 0.30kg 0.30kg
Details
1-way liqiud module
PO F03020001 F03020002
1-way liqiud module
Robot Side
1-way liqiud module
Tool Side
Model LMO-L01B
Spec 1*PT1/2 self-sealing liquid circuit
Weight 0.699kg 0.664kg
Details
2-way liqiud module
PO F03020003 F03020004
2-way liqiud module
Robot Side
2-way liqiud module
Tool Side
Model LMO-L02B
Spec 2*PT1/2 self-sealing liquid circuit
Weight 0.4kg 0.4kg
Details
Bus ModuleBus Module
Ethernet bus module
PO F04050018 F04050019
Ethernet bus module
Robot Side
Ethernet bus module
Tool Side
Model LMO-F21-S13-BI01-AF01
Spec Suitable for Ethernet, EtherNetIP, EtherCAT, PROFINET, 9A*7/8-5Pin power supply, M12-4Pin D-Coded bus interface, 3A*13pin signal
Weight 0.558kg 0.511kg
Details
DEVICENET bus module
PO F04050016 F04050017
DEVICENET bus module
Robot Side
DEVICENET bus module
Tool Side
Model LMO-F21-S13-BI02-AF01
Spec Suitable for devicenet, 9A*7/8-4Pin power supply, M12-5Pin bus interface, 3A*13pin signal
Weight 0.558kg 0.511kg
Details
PROFIBUS bus module
PO F04050022 F04050023
PROFIBUS bus module
Robot Side
PROFIBUS bus module
Tool Side
Model LMO-F21-S13-BI04-AF01
Spec Suitable for Profibus, 9A*7/8-5Pin power supply, M12-5Pin B-Coded bus interface, 3A*13pin signal
Weight 0.558kg 0.511kg
Details
CC-Link bus module
PO F04050026 F04050027
CC-Link bus module
Robot Side
CC-Link bus module
Tool Side
Model LMO-F21-S13-BI03-AF01
Spec Suitable for CC-Link, 9A*7/8-5Pin power supply, M12-5Pin A-Coded bus interface, 3A*13pin signal
Weight 0.563kg 0.496kg
Details
Gigabit Ethernet bus module
PO F04050024 F04050025
Gigabit Ethernet bus module
Robot Side
Gigabit Ethernet bus module
Tool Side
Model LMO-F21-S05-BI05-AF01
Spec Suitable for Gigabit Ethernet, 9A*7/8-5Pin power supply, M12-8Pin X-Coded bus interface, 3A*5pin signal
Weight 0.558kg 0.511kg
Details
Ethernet bus module (Supplementary)
PO F04020009 F04020010
Ethernet bus module (Supplementary)
Robot Side
Ethernet bus module (Supplementary)
Tool Side
Model LMO-E12-BI01
Spec Ethernet bus module
Weight 0.207kg 0.184kg
Details
Ethernet bus module (Supplementary)
PO F04020007 F04020008
Ethernet bus module (Supplementary)
Robot Side
Ethernet bus module (Supplementary)
Tool Side
Model LMO-E12-BI05
Spec Ethernet bus module
Weight 0.210kg 0.188kg
Details
Ethernet bus module (RJ45 Interface)
PO F04020001 F04020002
Ethernet bus module (RJ45 Interface)
Robot Side
Ethernet bus module (RJ45 Interface)
Tool Side
Model LMO-E12-BI15
Spec Ethernet bus module
Weight 0.254kg 0.231kg
Details
