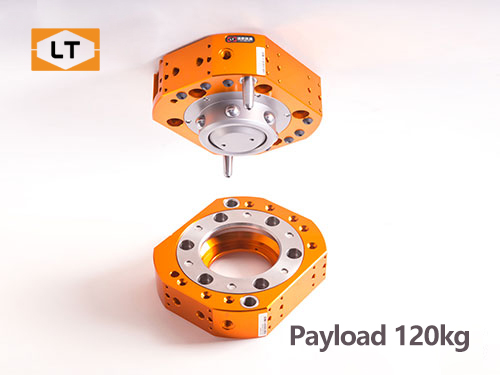

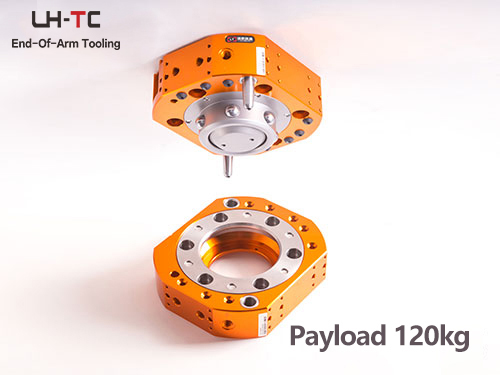

LTC-0120D Tool Changer

Model: LTC-0120D

Robot Side PO: 0142 Tool Side PO: 0242

Recommended payload ≤ 120kg

Locking force: 15407N allowable Moment: 842N·m (static) allowable torque: 1200N·m (static)

8*PT1/8 pneumatic port and 4 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

  • Introduction

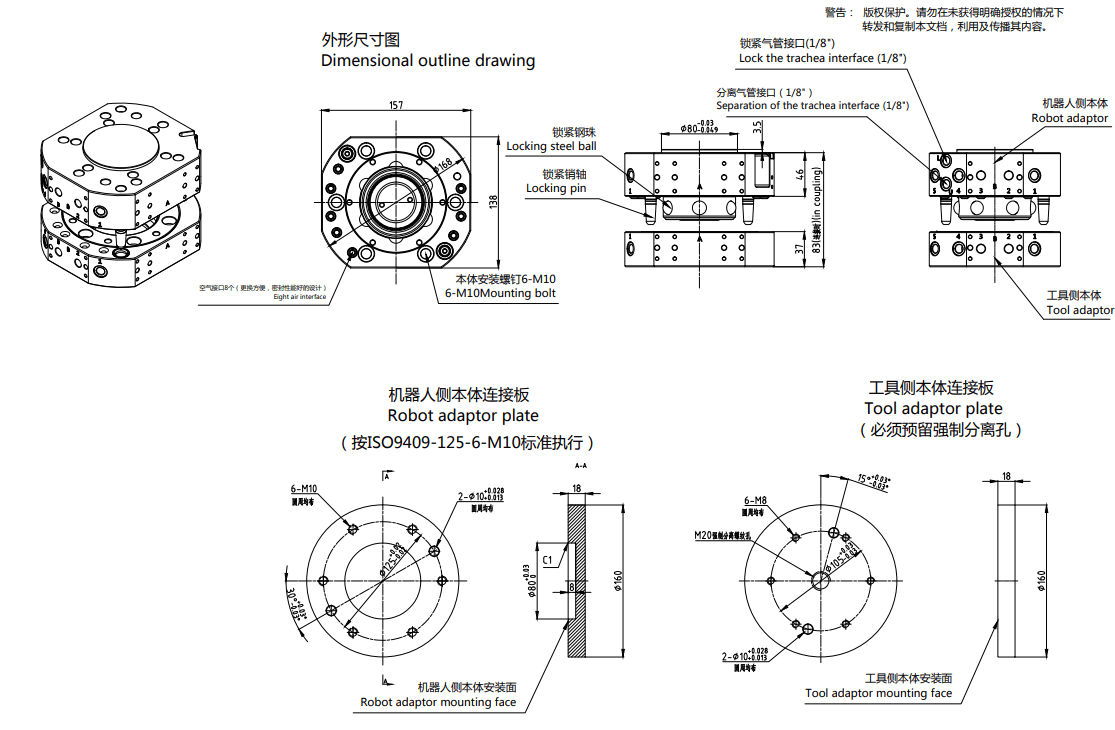

  • CAD Drawing
  • 3D Model
  • Optional Modules

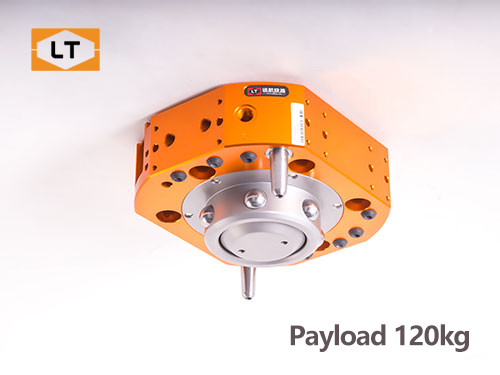

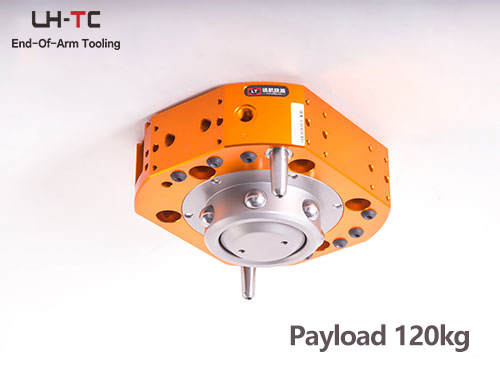

Model Master  plate LTC-0120DM

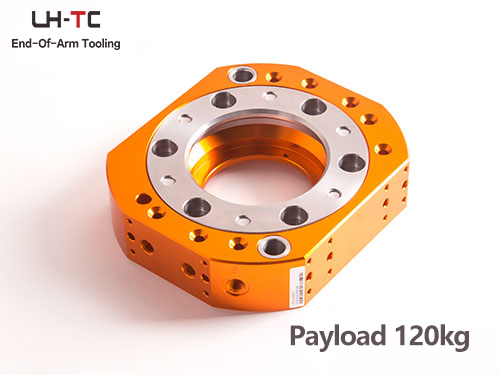

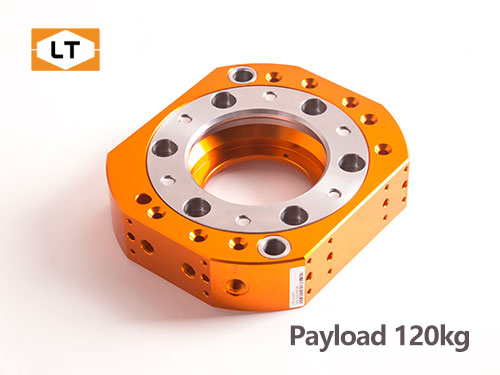

Tool plate LTC-0120DT
load Payload capacity 120kg
(when pressure 0.49Mpa)Locking Force 15407N
(Static) Allowable moment 842N·m
(Static) Allowable torque 1200N·m
Size and precision Housing diameter φ168mm
Combined profile 83mm
Position repeatability ±0.02mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 0-95%
Weight Master side 2.28kg
Tool side 1.58kg
Air connector Pneumatic port 8 x PT1/8
Max pressure 0.8Mpa



SensorSensor
Electrical ModuleElectrical Module
High-Frequency ModuleHigh-Frequency Module
Servo Motor ModuleServo Motor Module
 Fluid&Air module Fluid&Air Module
Bus ModuleBus Module
