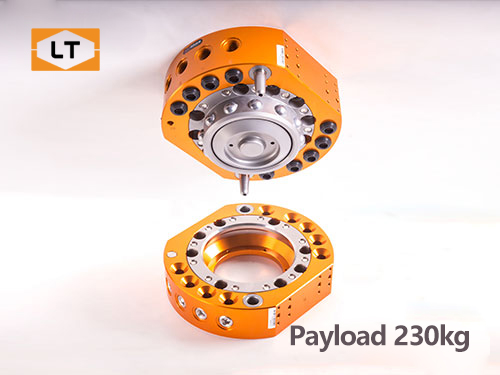

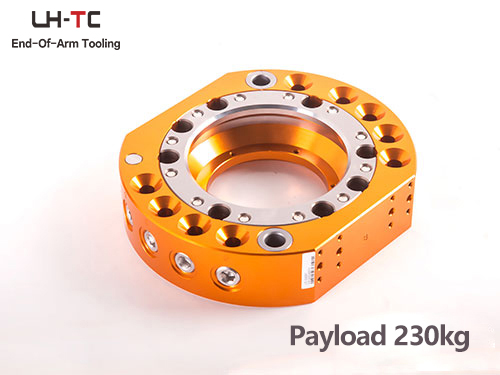

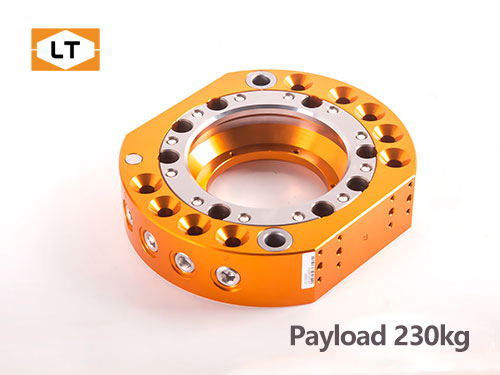

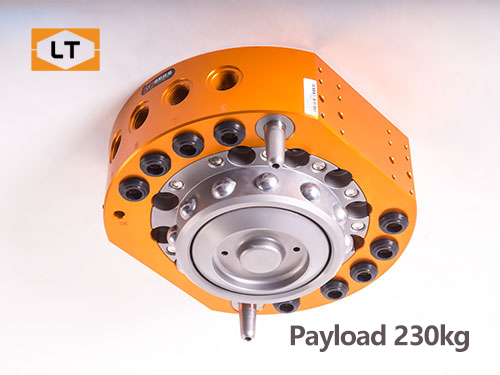

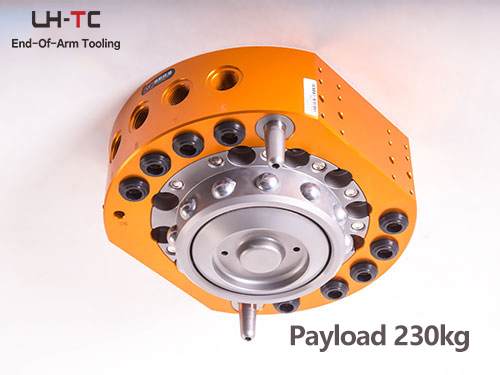

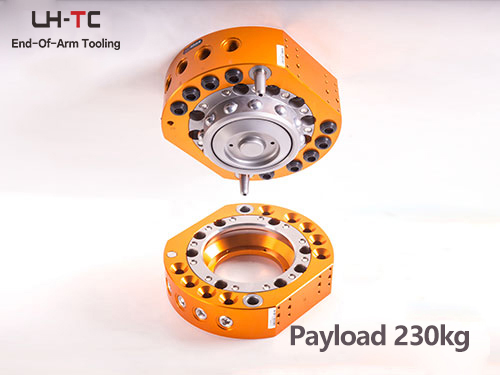

LTC-0200D Tool Changer

Model: LTC-0200D

Robot Side PO:0138 Tool Side PO:0238

Recommended payload ≤ 230kg

Ball locking mechanism

9*PT3/8 pneumatic port and 2 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

  • Introduction

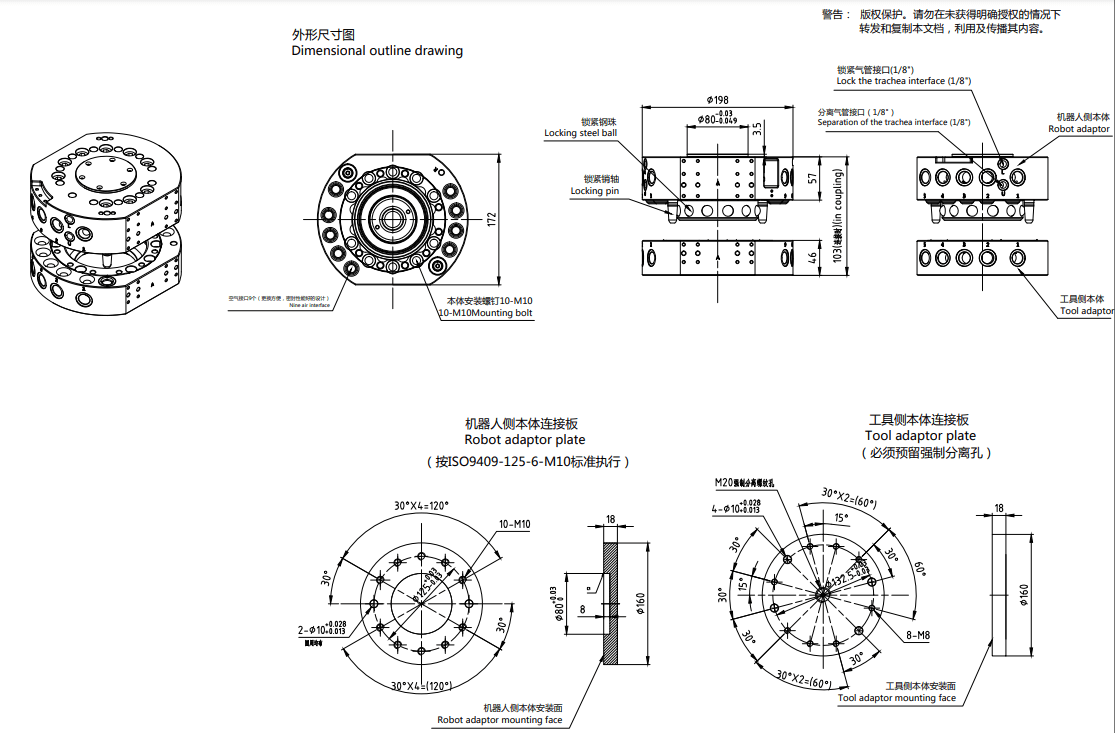

  • CAD Drawing
  • 3D Model
  • Optional Modules
Model Master  plate LTC-0200DM
Tool plate LTC-0200DT
load Payload capacity 230kg
(when pressure 0.49Mpa)Allowable moment 31458N
(Static) Allowable moment 2260N·m
(Static) Allowable torque 2245N·m
Size and precision Housing diameter φ198mm
Combined profile 103mm
Position repeatability ±0.02mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel   ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 95%
Weight Master side5.90 5.90kg
Tool side 2.97kg
Air connector Pneumatic port 9 x PT3/8
Max pressure 0.8Mpa
Electrical ModuleElectrical Module
High-Frequency ModuleHigh-Frequency Module
Servo Motor ModuleServo Motor Module
Gas and Liquid ModuleGas and Liquid Module
Bus ModuleBus Module
