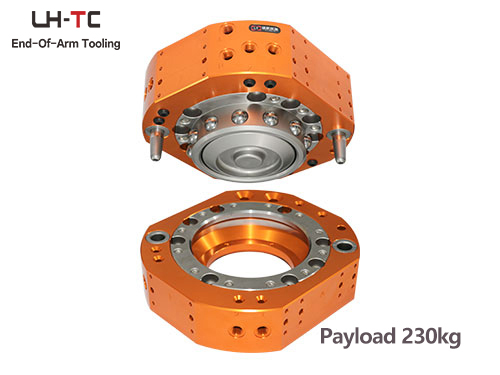

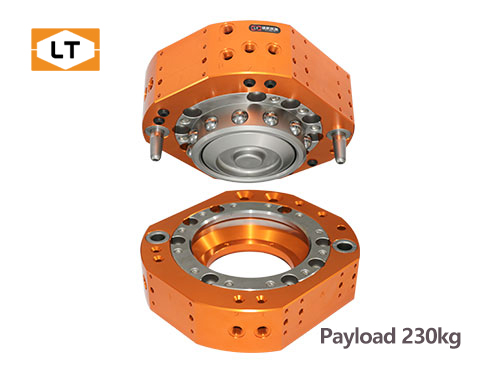

Model: LTC-0200F
Robot Side PO: 0143 Tool Side PO: 0243
Recommended payload ≤ 230kg
Locking force: 31458N allowable Moment: 2260N·m (static) allowable torque: 2245N·m (static)
6*PT1/8 pneumatic port ,2*PT3/8 pneumatic port, and 4 modules mounting interface
Suitable for handling, palletizing, welding, grinding, deburring and other applications
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
Model | Master plate | LTC-0200FM |
Tool plate | LTC-0200FT | |
load | Payload capacity | 230kg |
(when pressure 0.49Mpa)Locking Force | 31458N | |
(Static) Allowable moment | 2260N·m | |
(Static) Allowable torque | 2245N·m | |

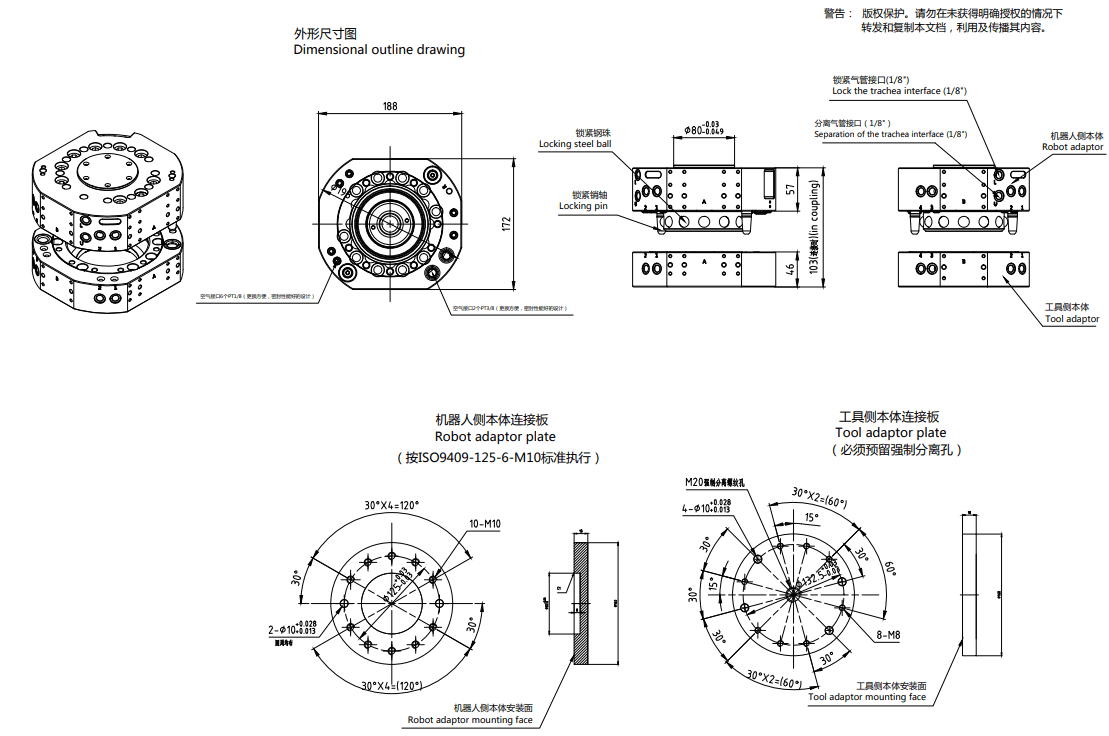

Size and precision | Housing diameter | φ198mm |
Combined profile | 103mm | |
Position repeatability | ±0.02mm | |
Air pressure for working | 0.4~0.7Mpa | |
Locking mechanism | Locking steel ball | |
Texture of material | Main body material | Aluminum alloy |
Locking mechanism | Alloy steel | |
Environmental Science | Temperature | 0-60℃ |
Humidity | 95% | |
Weight | Master side5.90 | 5.90kg |
Tool side | 2.97kg | |
Air connector | Pneumatic port | 6 x PT1/8 + 2 x PT3/8 |
Max pressure | 0.8Mpa |
7pins signal module | ||
---|---|---|
PO | 0357 | 0358 |
Photo |

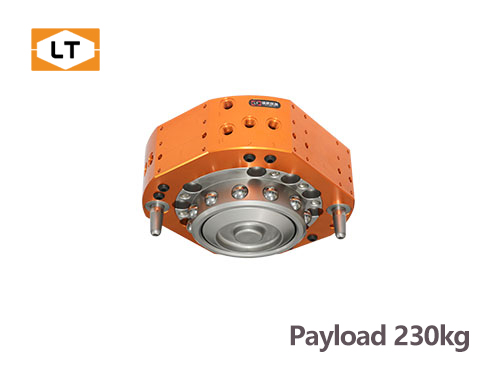

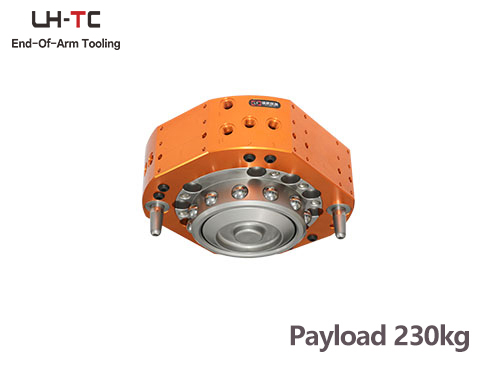

Robot Side
|

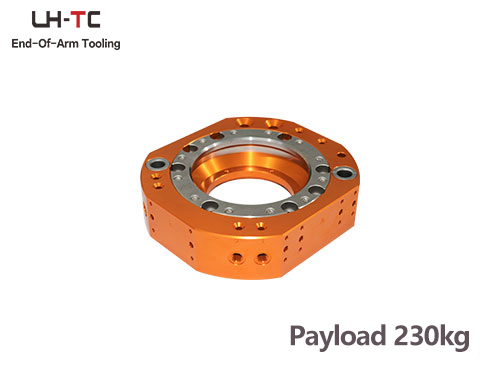

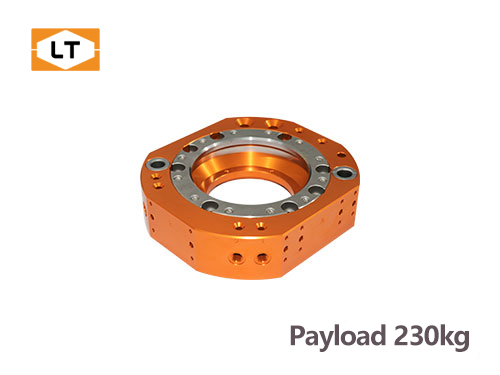

Tool Side
|
Model | LMO-E16-MS07A-AF01 | |
Spec | 5A*7pin for single + 3A*1pin for ground | |
Weight | 0.294kg | 0.246kg |
Details |
15pins signal module | ||
---|---|---|
PO | 0393 | 0394 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-MS15A-AF01 | |
Spec | 5A * 15Pins | |
Weight | 0.483kg | 0.402kg |
Details |
22pins signal module | ||
---|---|---|
PO | 0533 | 0534 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-MS22-AF01 | |
Spec | 5A * 22Pins | |
Weight | 0.562kg | 0.440kg |
Details |
34pins signal module | ||
---|---|---|
PO | 0558 | 0559 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S34A-AF01 | |
Spec | 3A*34Pins | |
Weight | 0572kg | 0.485kg |
Details |
48pins signal module | ||
---|---|---|
PO | 0537 | 0538 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S48-AF01 | |
Spec | 3A*48Pins | |
Weight | 0.657kg | 0.530kg |
Details |
19pins signal module (Supplementary) | ||
---|---|---|
PO | 0361 | 0362 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-E12-S19A | |
Spec | 3A * 19Pins | |
Weight | 0.253kg | 0.234kg |
Details |
26pins signal module (Supplementary) | ||
---|---|---|
PO | 0595 | 0596 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-E12-S26 | |
Spec | 3A * 26Pins | |
Weight | 0.288kg | 0.255kg |
Details |
38pins signal module (Supplementary) | ||
---|---|---|
PO | 0579 | 0580 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F22-S38A | |
Spec | 3A*38Pins | |
Weight | 0.530kg | 0.475kg |
Details |
52pins signal module (Supplementary) | ||
---|---|---|
PO | 0567 | 0568 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F22-S52 | |
Spec | 3A*52Pins | |
Weight | 0.633kg | 0.522kg |
Details |
Power supply + signal module | ||
---|---|---|
PO | 0539 | 0540 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-E06A-S15-AF01 | |
Spec | 20A*6Pin for electrical power supply, 3A*15Pin for signal | |
Weight | 0.582kg | 0.517kg |
Details |
Power supply + signal module | ||
---|---|---|
PO | 0541 | 0542 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-E06A-S22-AF01 | |
Spec | 20A*6pin for electrical power supply, 3A*22Pin for signal | |
Weight | 0.645kg | 0.536kg |
Details |
2-way air supply module | ||
---|---|---|
PO | 0477 | 0478 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GC02A | |
Spec | 2*PT3/8 Open air circuit | |
Weight | 0.118kg | 0.109kg |
Details |
4-way air supply module | ||
---|---|---|
PO | 0479 | 0480 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GC04A | |
Spec | 4*PT3/8 Open air circuit | |
Weight | 0.285kg | 0.242kg |
Details |
6-way air supply module | ||
---|---|---|
PO | 0481 | 0482 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GC06A | |
Spec | 6*PT1/8 Open air circuit | |
Weight | 0.124kg | 0.114kg |
Details |
10-way air supply module | ||
---|---|---|
PO | 0625 | 0626 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GC10A | |
Spec | 10*PT1/8 Open air circuit | |
Weight | 0.211kg | 0.192kg |
Details |
1-way self-sealing air supply module | ||
---|---|---|
PO | 1212 | 1213 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GS01A | |
Spec | 1*PT3/8 self-sealing air circuit | |
Weight | 0.228kg | 0.215kg |
Details |
2-way self-sealing air supply module | ||
---|---|---|
PO | 1216 | 1217 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GS02B | |
Spec | 2*PT3/8 self-sealing air circuit | |
Weight | 0.21kg | 0.21kg |
Details |
3-way self-sealing air supply module | ||
---|---|---|
PO | 1218 | 1219 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GS03A | |
Spec | 3*PT3/8 self-sealing air circuit | |
Weight | 0.25kg | 0.25kg |
Details |
4-way self-sealing air supply module | ||
---|---|---|
PO | 1220 | 1221 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-GS04A | |
Spec | 4*PT3/8 self-sealing air circuit | |
Weight | 0.30kg | 0.30kg |
Details |
Ethernet bus module | ||
---|---|---|
PO | 1113 | 1114 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-E11-S05-BI01-AF01 | |
Spec | Ethernet bus module | |
Weight | 0.281kg | 0.218kg |
Details |
Ethernet bus module | ||
---|---|---|
PO | 0545 | 0546 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S13-BI01-AF01 | |
Spec | Suitable for Ethernet, EtherNetIP, EtherCAT, PROFINET, 9A*7/8-5Pin power supply, M12-4Pin D-Coded bus interface, 3A*13pin signal | |
Weight | 0.558kg | 0.511kg |
Details |
DEVICENET bus module | ||
---|---|---|
PO | 0543 | 0544 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S13-BI02-AF01 | |
Spec | Suitable for devicenet, 9A*7/8-4Pin power supply, M12-5Pin bus interface, 3A*13pin signal | |
Weight | 0.558kg | 0511kg |
Details |
PROFIBUS bus module | ||
---|---|---|
PO | 0549 | 0550 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S13-BI04-AF01 | |
Spec | Suitable for Profibus, 9A*7/8-5Pin power supply, M12-5Pin B-Coded bus interface, 3A*13pin signal | |
Weight | 0.558kg | 0511kg |
Details |
CC-Link bus module | ||
---|---|---|
PO | 0553 | 0554 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S13-BI03-AF01 | |
Spec | Suitable for CC-Link, 9A*7/8-5Pin power supply, M12-5Pin A-Coded bus interface, 3A*13pin signal | |
Weight | 0.563kg | 0.496kg |
Details |
Gigabit Ethernet bus module | ||
---|---|---|
PO | 0551 | 0552 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-F21-S05-BI05-AF01 | |
Spec | Suitable for Gigabit Ethernet, 9A*7/8-5Pin power supply, M12-8Pin X-Coded bus interface, 3A*5pin signal | |
Weight | 0.558kg | 0.511kg |
Details |
Ethernet bus module (Supplementary) | ||
---|---|---|
PO | 0333 | 0334 |
Photo |
Robot Side
|
Tool Side
|
Model | LMO-E12-BI01 | |
Spec | Ethernet bus module | |
Weight | 0.207kg | 0.184kg |
Details |
